73.7 HP Diesel
LS MT774CPS
- 65.6 HPPTO power
- F34Diesel engine
- 30.4 galFuel tank
Power Shuttle
Speeds and drive
- 24F × 24RSpeeds
- 4WD standardDrive
- R14Tires
5,139 lb Loader Lift
LL8100 loader
- 5,139 lbLift capacity
- 83 inBucket width
- LL8100Loader model
Built to Work
Hitch and hydraulics
- Cat II3-pt hitch
- 22.2 gpmHydraulic flow
- 7,827 lbWeight

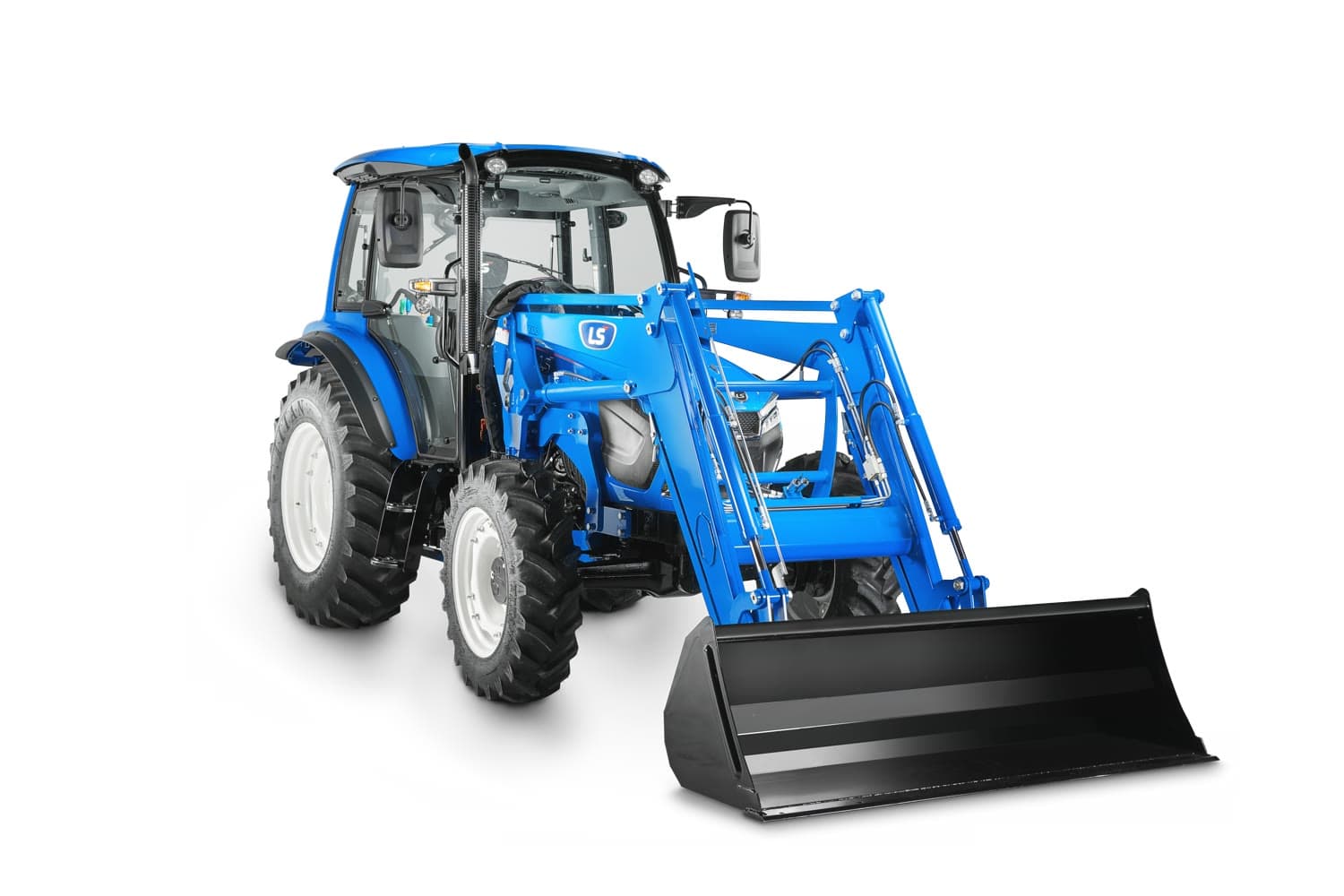

LS MT774CPS
73.7 HP · 65.6 PTO HP · Power Shuttle · Factory Cab (heat & A/C)
Customize: station, loader and attachments
Pricing subject to change. Tax, title, and delivery not included.
Certified LS techs, genuine LS parts, and field service available — in many cases we come to you. Service: (601) 336-2541
6-year powertrain warranty + 2-year bumper-to-bumper · 3069 Hwy 49, Collins MS 39428

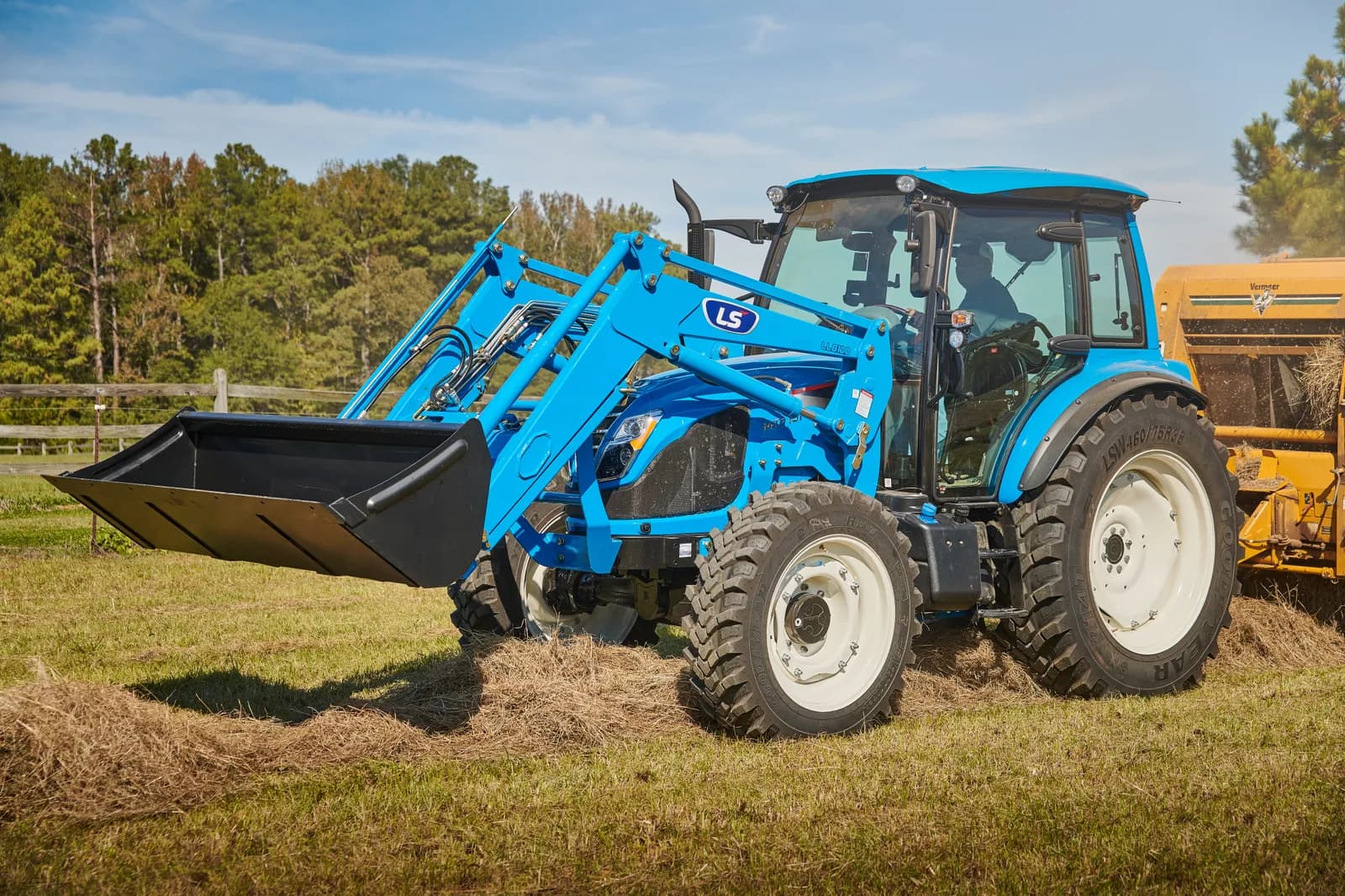

The MT774CPS is high-horsepower utility — a 73.7 HP four-cylinder CRDI diesel on a 24-speed Power Shuttle, in a full cab built for all-day work. The numbers are in a different class than the compacts: 22.2 gallons per minute of hydraulic flow, a CAT II hitch lifting 7,275 pounds, and the big LL8100 loader on an 83-inch bucket. Independent 540/750/1,000 PTO runs three-speed implements, and the wet multi-disc brakes and 30-gallon fuel tank are built for long days baling hay or working ground. This is the tractor for the operation that's outgrown a compact and needs serious capability without stepping all the way up to the MT7101.
| Engine | F34 — 4-cylinder CRDI water-cooled diesel |
|---|---|
| Engine HP (gross) | 73.7 HP (55 kW) |
| PTO HP | 65.6 HP |
| Rated speed | 2,200 rpm |
| Displacement | 206.7 in³ |
| Transmission | Power Shuttle, 24F × 24R |
| Operator station | Factory cab — heat & A/C |
| PTO | Independent — 540 / 750 / 1,000 |
| Hydraulics (total) | 22.2 gpm |
| 3-pt hitch | Cat II — 7,275 lb lift |
| Tires | R14 — 320/85R24 front / 460/85R30 rear |
| Fuel tank | 30.4 gal |
| Weight (no ballast) | 7,827 lb |
| Drive | 4WD standard |
| Loader pairing | LL8100 — 5,139 lb lift, 83″ bucket |
Specifications from LS Tractor USA published data. Final ordered configuration confirmed when we call.
Ready to move on the MT774CPS?
Add it to your cart and pay at one checkout. Tax, title, and delivery are settled at delivery, and we call within 1 business day to confirm the LL8100 loader and any implements you want.
| Model | HP | Transmission | Loader |
|---|---|---|---|
| LS MT774CPS (this tractor) | 73.7 | Power Shuttle (24F × 24R) | LL8100 · 5,139 lb |

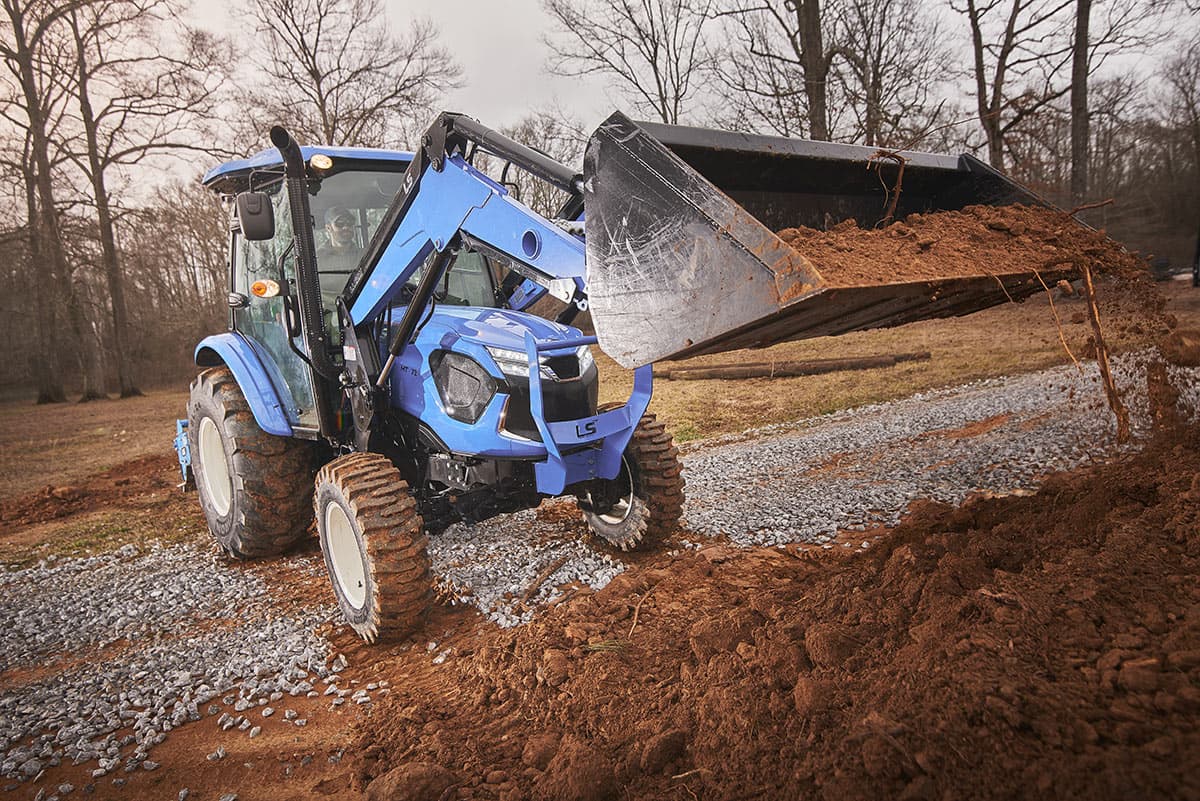

| LS MT473CPS 73 HP utility tractor | 73 | PowerShuttle (16F × 16R) | LL4001 · 2,998 lb |

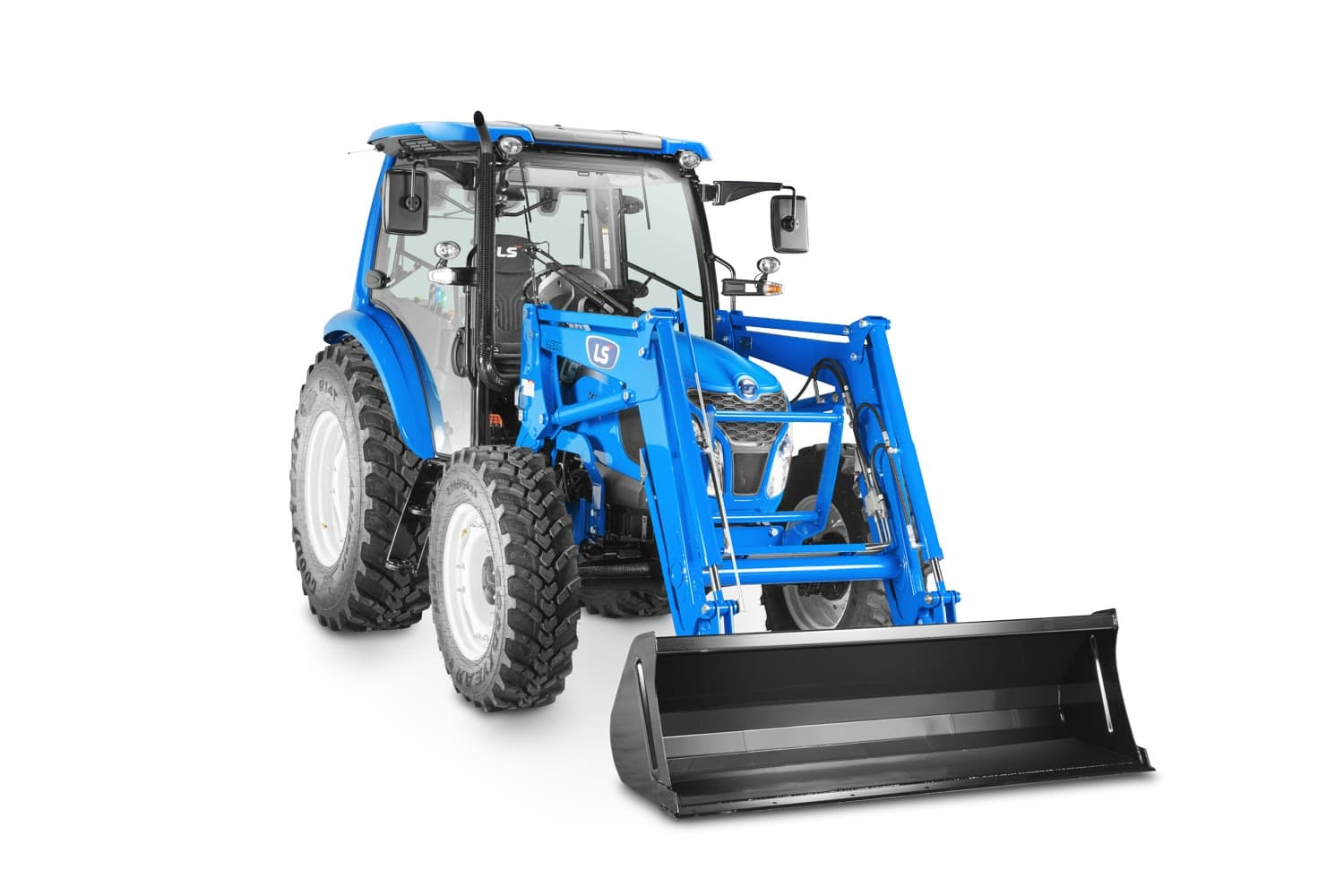

| LS MT573CPS 73 HP utility tractor | 73 | Power Shuttle (F20 × R20) | LL6100 · 3,626 lb |
| LS MT468 68 HP utility tractor | 68 | Gear (synchro shuttle) | LL5106 · 2,981 lb |
| LS MT468C 68 HP utility tractor | 68 | Gear (synchro shuttle) | LL5106 · 2,981 lb |

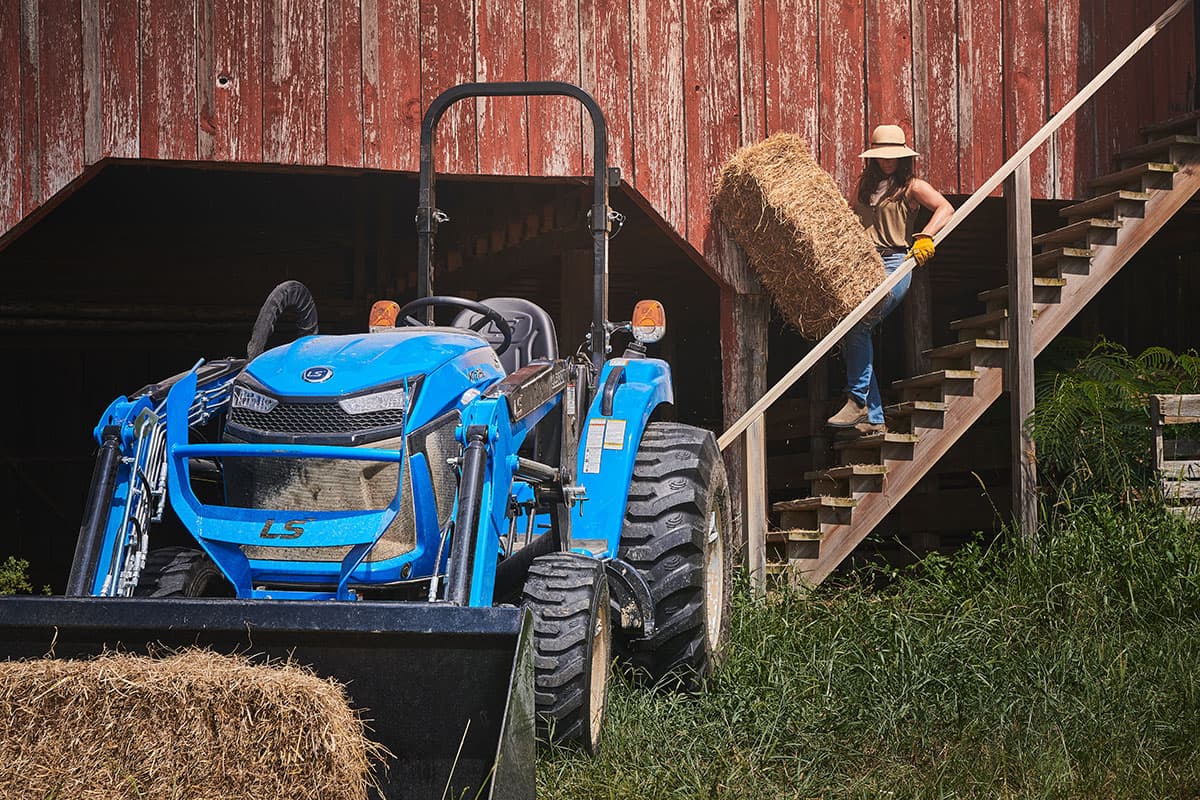

| LS MT226E 24.6 HP compact tractor | 24.6 | Gear (12F × 12R) | LL3002 · 1,965 lb |
| LS MT125 24.7 HP sub-compact tractor | 24.7 | Hydrostatic (HST) | LL1102 · 1,008 lb |
| LS MT225S 24.7 HP small compact tractor | 24.7 | Hydrostatic (HST) | LL2300 · 1,067 lb |

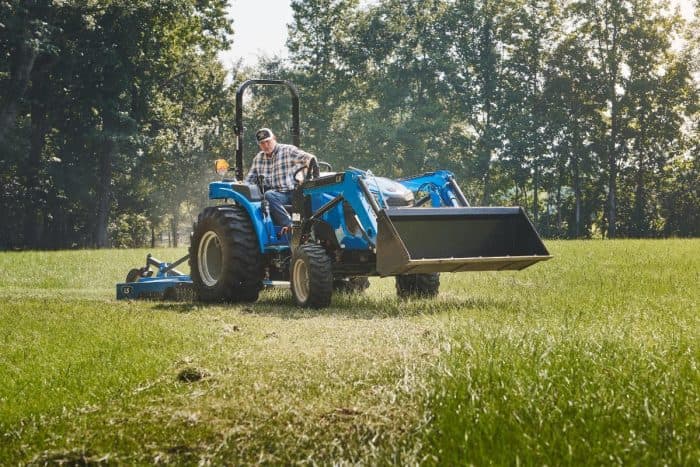

| LS MT242HE 42.5 HP compact tractor | 42.5 | Hydrostatic (HST) | LL3003 · 2,506 lb |
| LS MT122 21.5 HP sub-compact tractor | 21.5 | Hydrostatic (HST) | LL1102 · 1,008 lb |
| LS MT240E 40 HP small compact tractor | 40 | Gear (synchro shuttle) | LL3302 · 2,153 lb |
Attachments for your MT774CPS
Everything here fits the MT774CPS. Pick a type to see the models and prices.
Questions about the LS MT774CPS
What are the specifications of the LS MT774CPS?
Key specs for the LS MT774CPS: Engine 73.7 HP; PTO 65.6 HP; Loader lift 5,139 lb. The full specification table is on this page.
How much does the LS MT774CPS cost?
The starting price for the LS MT774CPS at Dykes Motors is $66,617.
Is the LS MT774CPS in stock?
It typically ships in about 10 business days after we place the order. Call (601) 516-7255 to confirm before you make the trip.
Does Dykes Motors sell parts and service for the LS MT774CPS?
Yes. Dykes Motors sells genuine LS Tractor parts and has a service department at 3069 Hwy 49 in Collins, Mississippi. Call parts and sales at (601) 516-7255 or service at (601) 336-2541.
Can I finance the LS MT774CPS?
You can apply for financing online with Dykes Motors, subject to credit approval.
