63 HP Diesel
LS MT463
- 54.1 HPPTO power
- 4 cylDiesel engine
- 24.3 galFuel tank
Gear Transmission
Speeds and drive
- 16F × 16RSpeeds
- 4WD standardDrive
- R14 radialTires
3,487 lb Loader Lift
LL5001 loader
- 3,487 lbLift capacity
- 78 inBucket width
- LL5001Loader model
Built to Work
Hitch and hydraulics
- Cat II3-pt hitch
- 21.1 gpmHydraulic flow
- 5,313 lbWeight

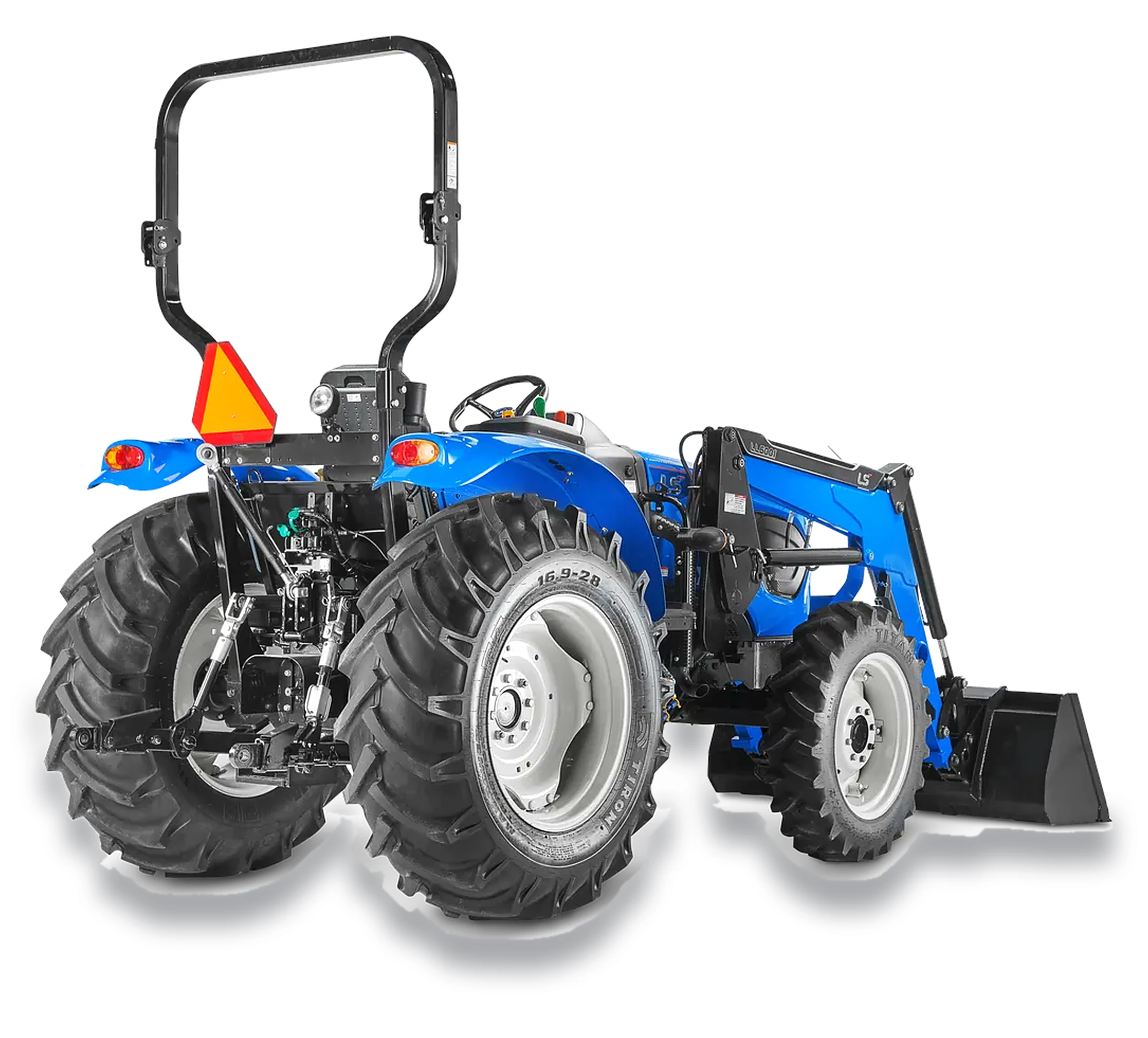

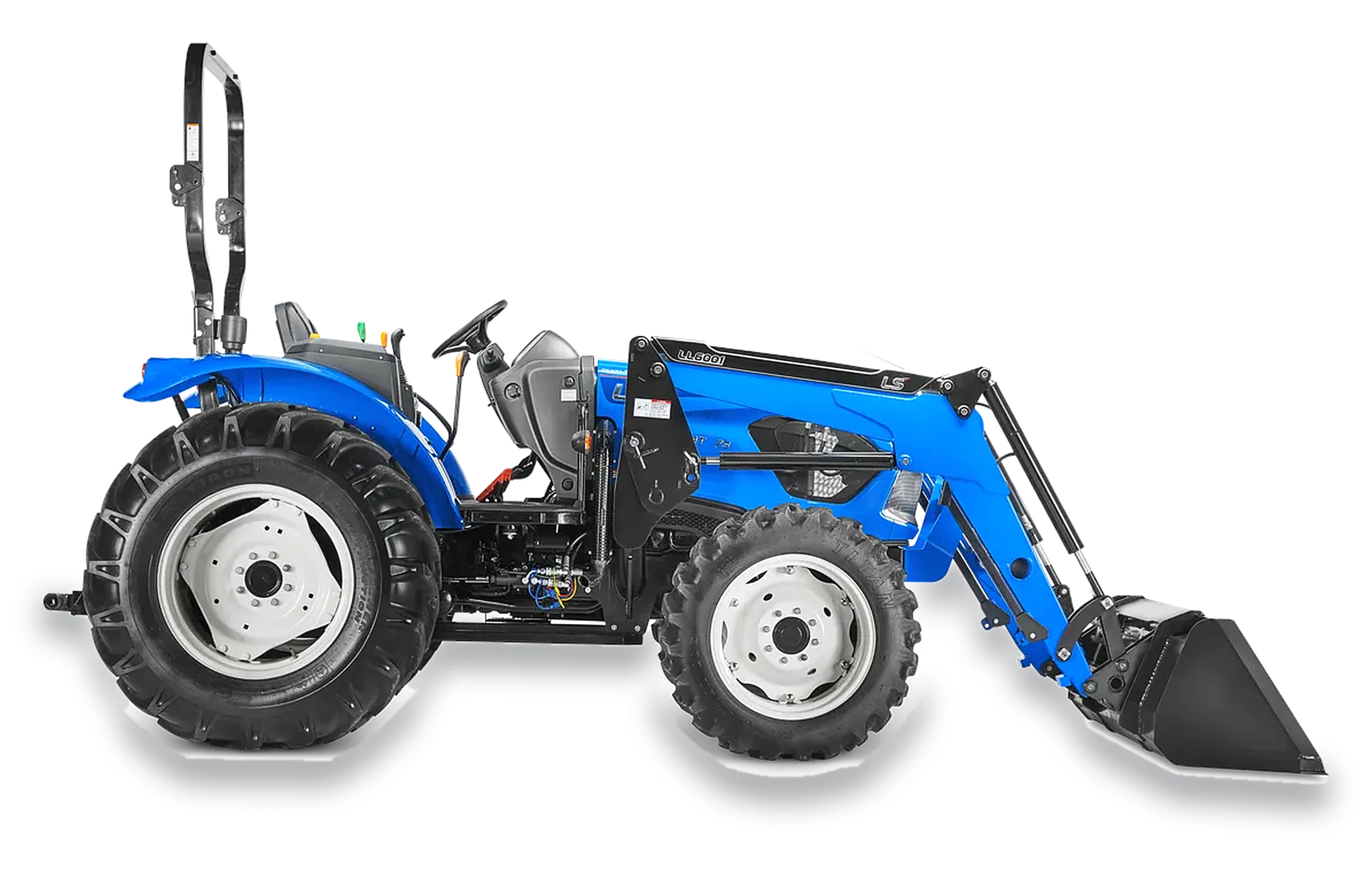

LS MT463
63 HP · 54.1 PTO HP · Gear · Open Station
| Engine | 4-cylinder liquid-cooled diesel |
|---|---|
| Engine HP (gross) | 63 HP |
| PTO HP | 54.1 HP |
| Transmission | Synchro shuttle gear, 16F × 16R |
| Operator station | Open station (ROPS) |
| Tires | R14 radial — 320-85R20 front / 420/75R34 rear |
| 3-pt hitch | Cat II — 3,483 lb lift |
| Hydraulics (total) | 21.1 gpm |
Customize: station, loader and attachments
Pricing subject to change. Tax, title, and delivery not included.
Certified LS techs, genuine LS parts, and field service available — in many cases we come to you. Service: (601) 336-2541
6-year powertrain warranty + 2-year bumper-to-bumper · 3069 Hwy 49, Collins MS 39428
The MT463 is where you leave compact territory and get into real utility iron. It's a 63 HP diesel on a 16-speed synchro shuttle gear box, with a Cat II hitch that lifts 3,483 pounds — that's hay equipment, heavy box blades, and big cutters without working it hard. The LL5001 loader is the big one: 3,487 pounds of lift on a 78-inch bucket, which moves a full pallet of feed or a round bale like it's nothing. Open station with R14 radials keeps it simple and keeps the cost down versus the cab models. If you're running cows, cutting hay, or maintaining a poultry farm, this size frame is what the job actually calls for.
| Engine | 4-cylinder liquid-cooled diesel |
|---|---|
| Engine HP (gross) | 63 HP |
| PTO HP | 54.1 HP |
| Transmission | Synchro shuttle gear, 16F × 16R |
| Operator station | Open station (ROPS) |
| Tires | R14 radial — 320-85R20 front / 420/75R34 rear |
| 3-pt hitch | Cat II — 3,483 lb lift |
| Hydraulics (total) | 21.1 gpm |
| Fuel tank | 24.3 gal |
| Weight (no ballast) | 5,313 lb |
| Drive | 4WD standard |
| Loader pairing | LL5001 — 3,487 lb lift, 78″ bucket |
Specifications from LS Tractor USA published data. Final ordered configuration confirmed when we call.
Ready to move on the MT463?
Add it to your cart and pay at one checkout. Tax, title, and delivery are settled at delivery, and we call within 1 business day to confirm the LL5001 loader and any implements you want.
Attachments for your MT463
Everything here fits the MT463. Pick a type to see the models and prices.
Every fitting model

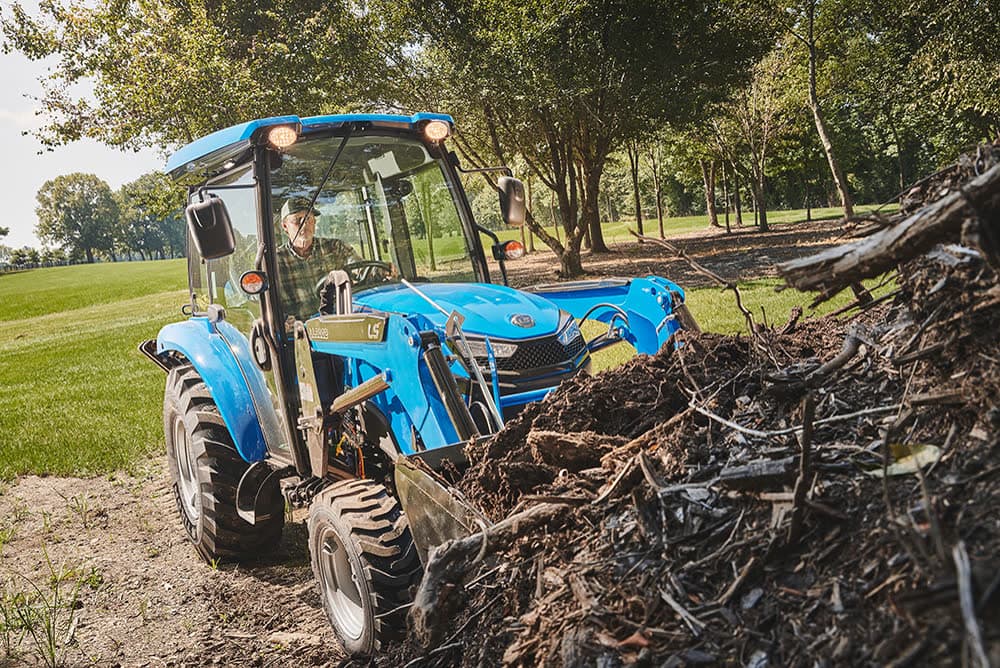

- LS LL5001 Front End Loader
- LS MRC5072SC Rotary Cutter — 72″ (Slip Clutch)
- LS LM4184 Finish Mower 84 in

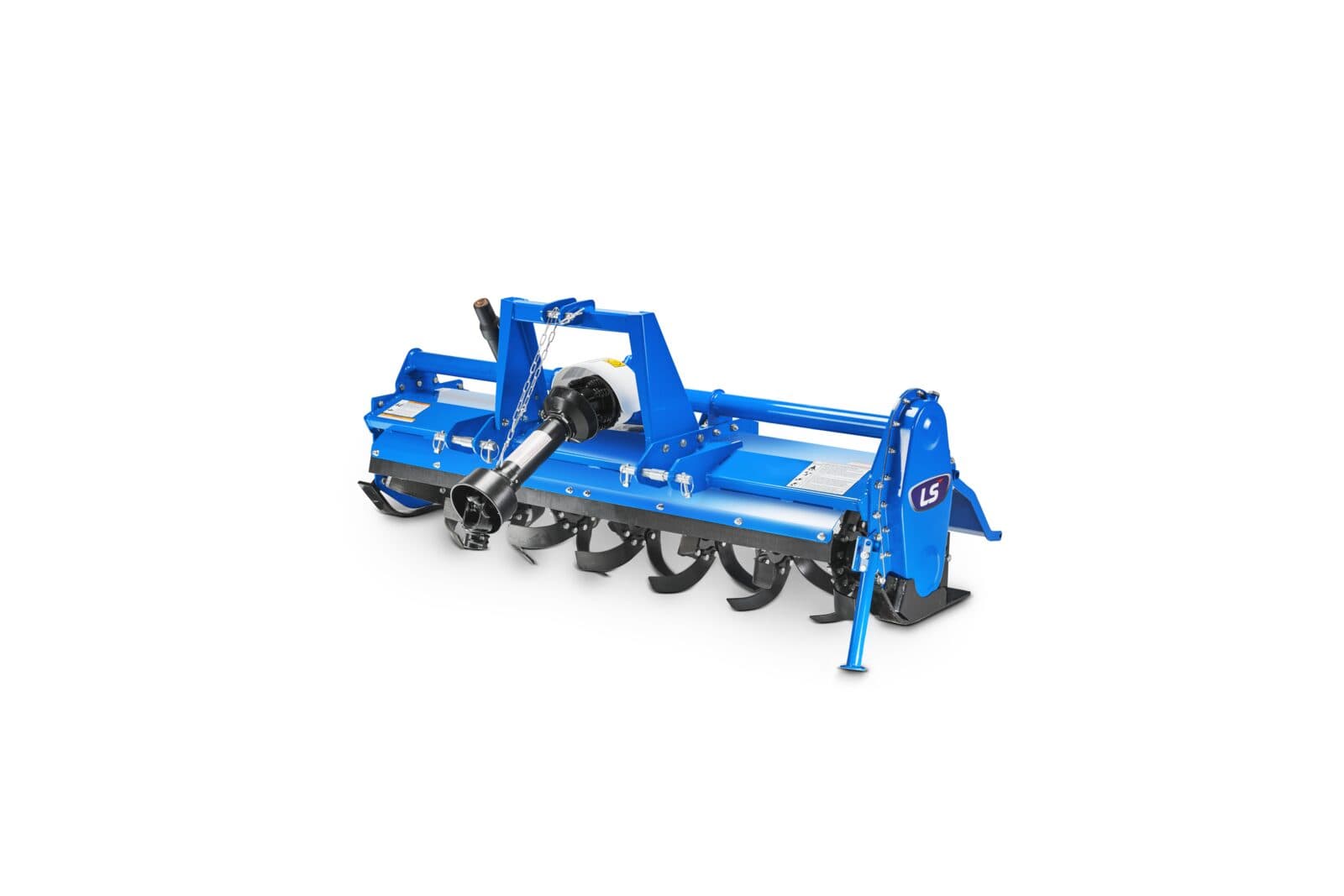

- LS MRT7201 Rotary Tiller 72 in
- LS MRC5084SC Rotary Cutter 84 in

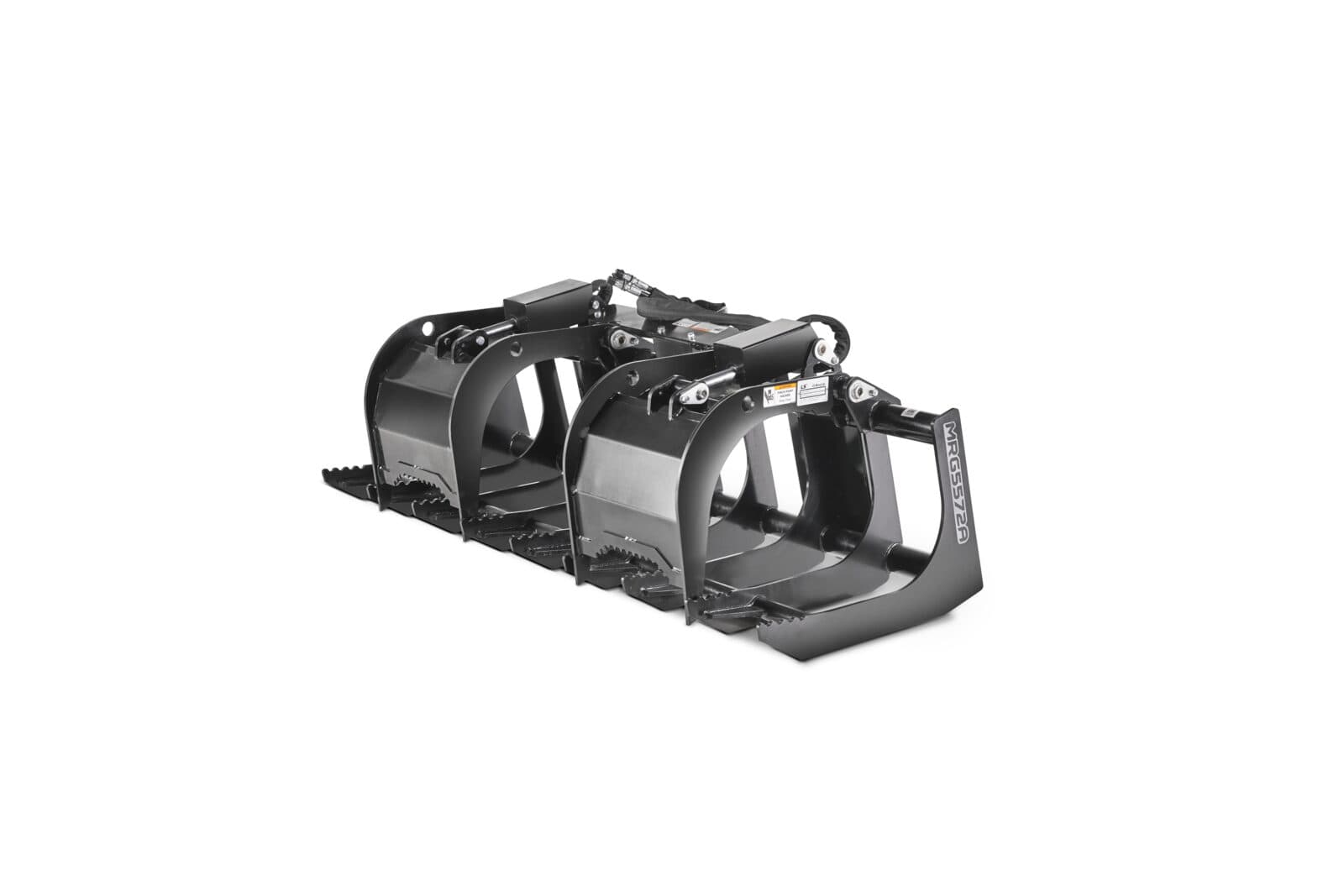

- LS MRG5566A Root Grapple 66 in
- LS MRT8401 Rotary Tiller 84 in
- LS MCG7201 Rake Grapple 72 in Skid Steer Mount
- LS MLG5084 Land Grader 84 in
- Taylor Pittsburgh Disc Harrows & Discs (86 models)
- Taylor Pittsburgh Box Blades & Rear Blades (43 models)
- Taylor Pittsburgh Rotary Cutters (32 models)
- Taylor Pittsburgh Tillers & Cultivators (21 models)
- Taylor Pittsburgh Finish Mowers (6 models)
Questions about the LS MT463
What are the specifications of the LS MT463?
Key specs for the LS MT463: Engine 63 HP; PTO 54.1 HP; Loader lift 3,487 lb. The full specification table is on this page.
How much does the LS MT463 cost?
The starting price for the LS MT463 at Dykes Motors is $38,123. Current MT4 offer: 0% for 60 Months or $6,000 Cash Back.
Is the LS MT463 in stock?
It typically ships in about 10 business days after we place the order. Call (601) 516-7255 to confirm before you make the trip.
Does Dykes Motors sell parts and service for the LS MT463?
Yes. Dykes Motors sells genuine LS Tractor parts and has a service department at 3069 Hwy 49 in Collins, Mississippi. Call parts and sales at (601) 516-7255 or service at (601) 336-2541.
Can I finance the LS MT463?
You can apply for financing online with Dykes Motors, subject to credit approval.
