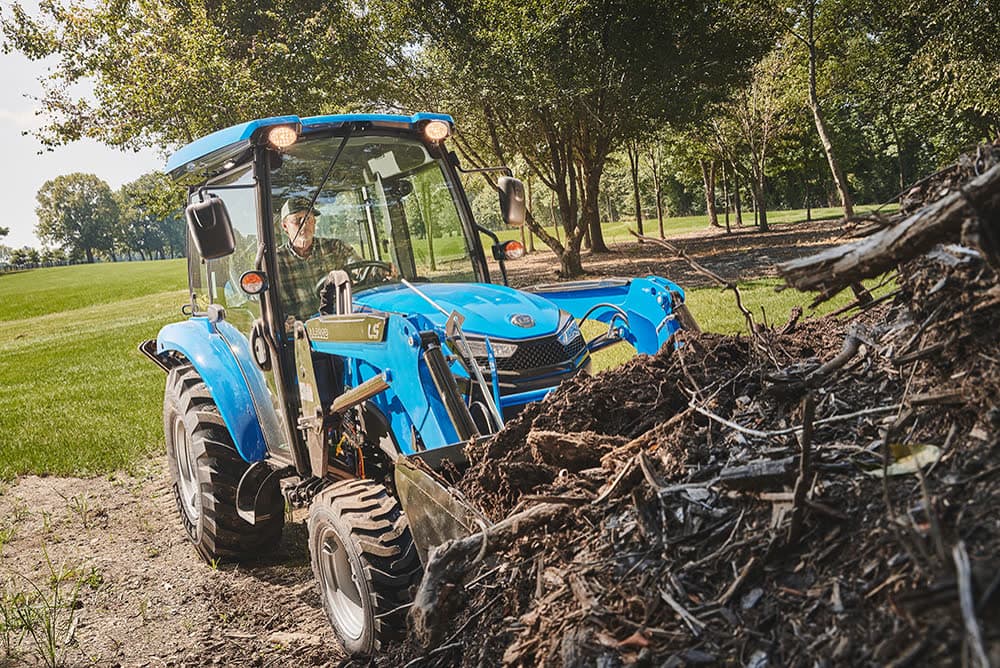

Match-fit loader for the MT226E. 1,965 pounds of lift at the pivot pin with a 66-inch bucket — sized so the tractor stays planted with a full scoop.

• Lift capacity (pivot pin @ 1.5m)1,965 lb
• Bucket width66″
• Max lift height94.3″
• Breakout force2,962 lb
• FitsMT226E

The workhorse loader across our MT2E and MT3 orders. 2,506 pounds of lift with a 66-inch bucket and 3,723 pounds of breakout force — a real jump over the smaller frame loaders.

• Lift capacity (pivot pin @ 1.5m)2,506 lb
• Bucket width66″
• Max lift height94.3″
• Breakout force3,723 lb
• FitsMT232HE, MT242HE, MT347HC

Our pairing for the MT473CPS. 2,998 pounds of lift on a 72-inch bucket with over 104 inches of lift height — clears the side of a dump trailer with room to spare.

• Lift capacity (pivot pin @ 1.5m)2,998 lb
• Bucket width72″
• Max lift height104.3″
• FitsMT473CPS

The big loader for the MT4 frame. 3,487 pounds of lift on a 78-inch bucket and 113 inches of lift height — pallets of feed, round bales, and loaded buckets of clay all day.

• Lift capacity3,487 lb
• Bucket width78″
• Max lift height113″
• FitsMT463

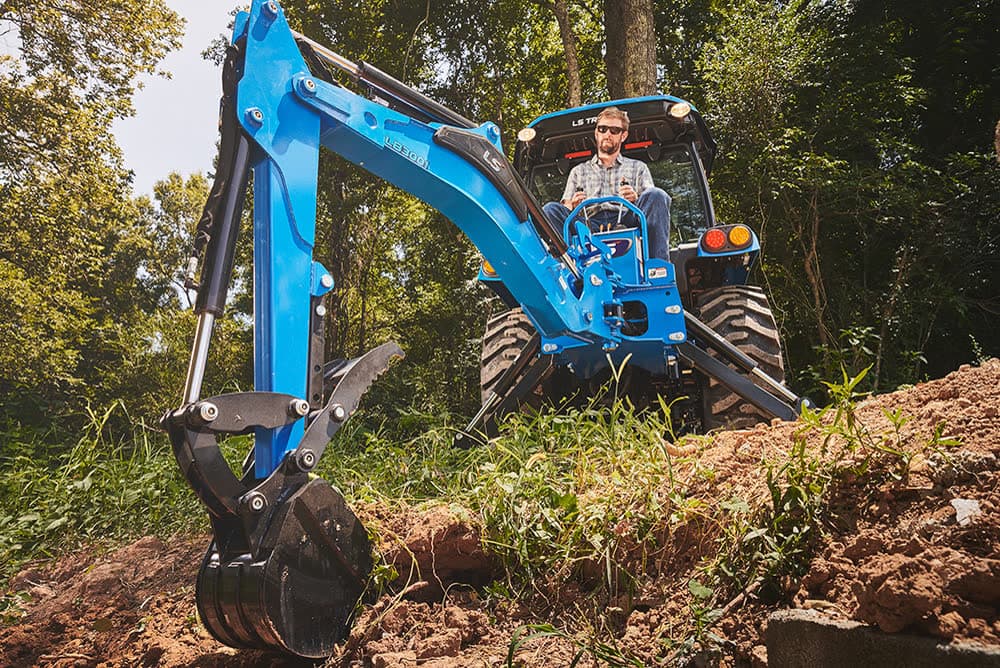

Subframe-mounted backhoe for the MT2E compacts — subframe included, so it mounts to the tractor frame the right way instead of hanging off the 3-point. Digs over 8 feet deep with 3,663 pounds of bucket force. Stumps, water lines, culverts.

• Digging depth97.2″
• Bucket digging force3,663 lb
• Swing arc160°
• Bucket rotation180°
• Loading height76.2″
• MountingSubframe included

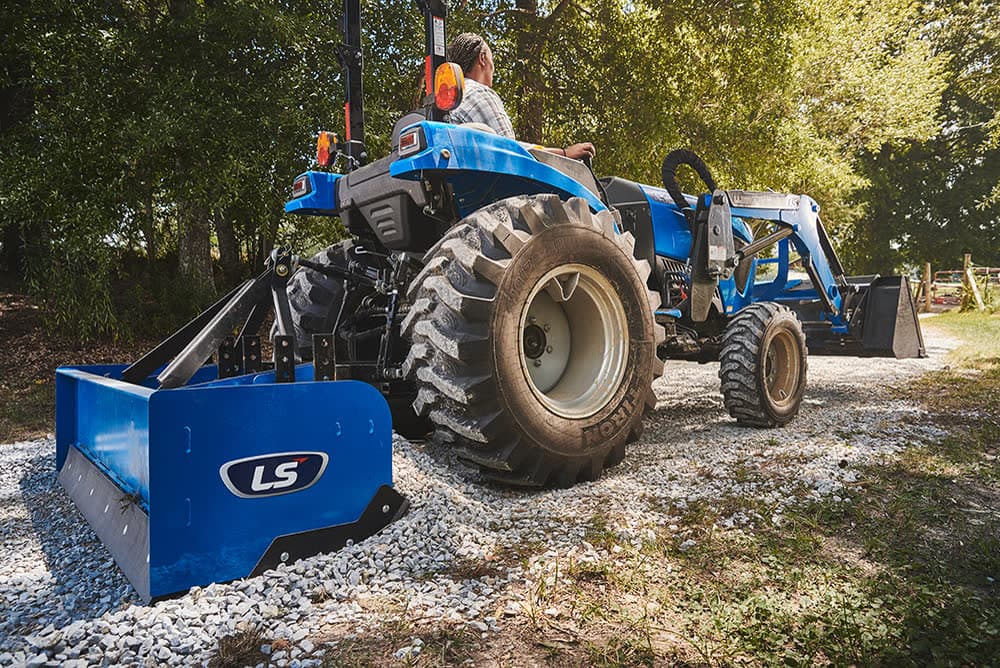

60-inch land grader on a Cat 1 quick hitch. Smooths driveways, pads, and washed-out gravel roads — drag it and let the blades do the work. Sized for 20 to 60 PTO horsepower, so it runs behind everything from a sub-compact to the MT242HE.

• Working width60″
• Recommended PTO HP20–60 HP
• HitchCat 1 quick hitch
• Capacity14.72 cu ft
• Weight436 lb

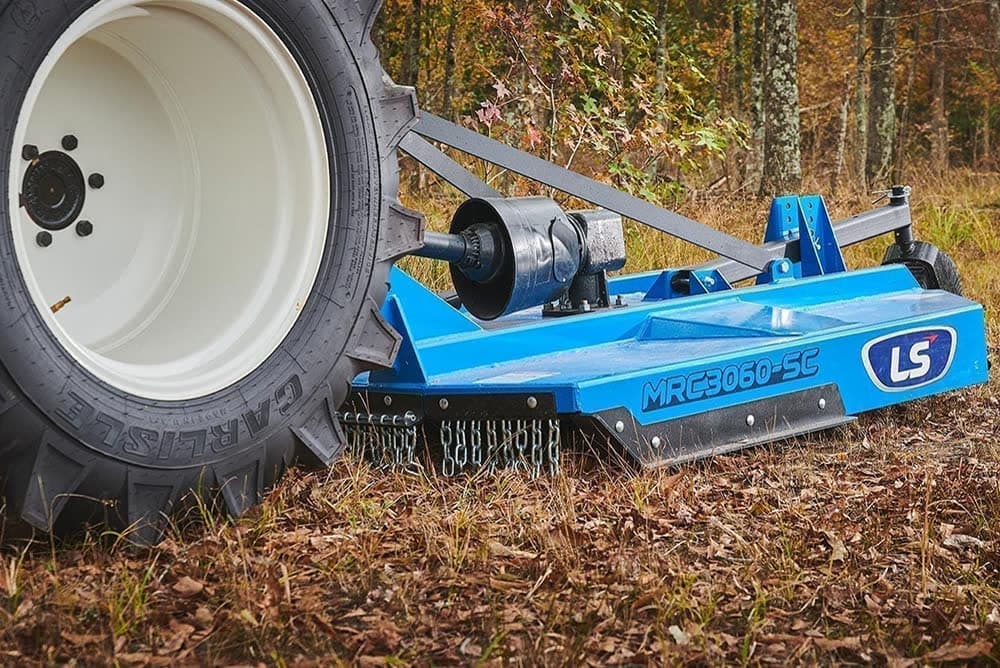

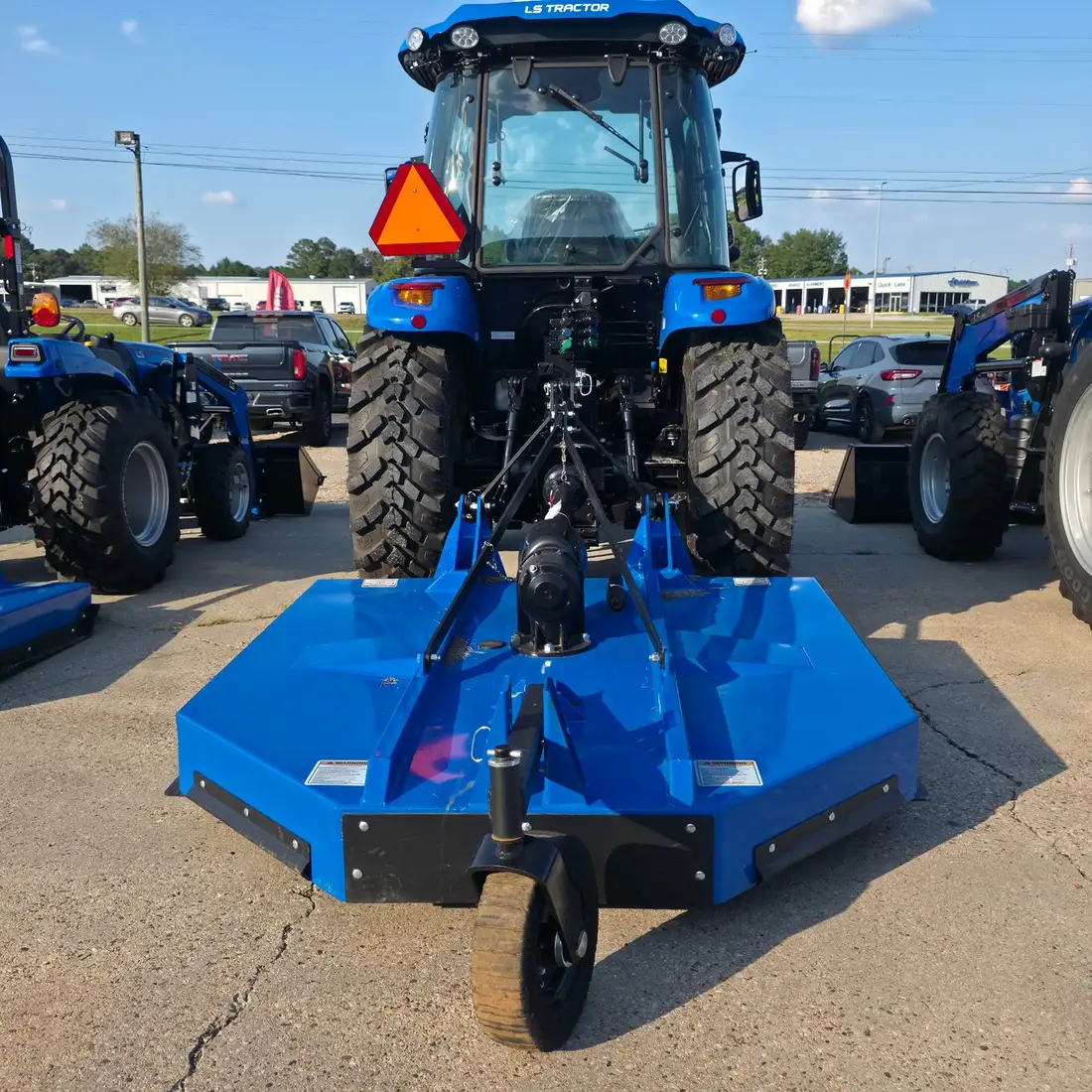

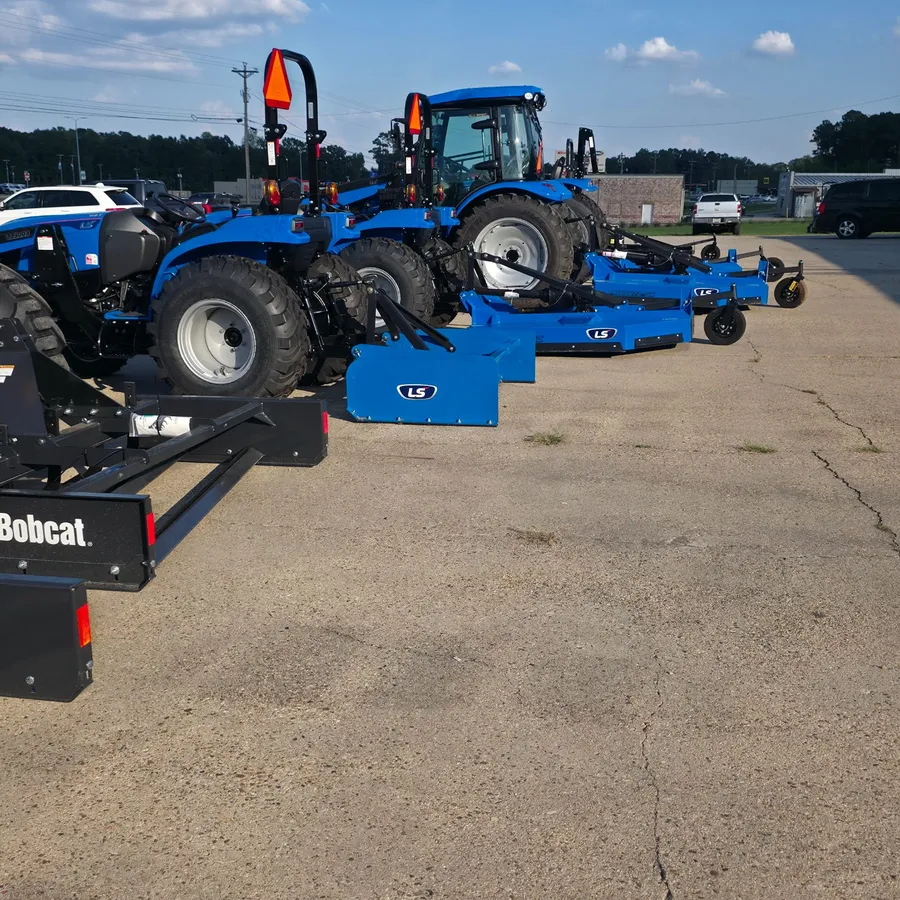

5-foot regular-duty rotary cutter with a slip-clutch driveline — when the blades find a stump, the clutch gives instead of your PTO shaft. 50 HP gearbox, 10-gauge welded deck, cuts brush up to 2 inches thick. The right cutter behind the MT226E, MT232HE, and MT242HE.

• Cutting width60″ (5 ft)
• DrivelineSlip clutch
• Gearbox50 HP heavy duty
• Cutting capacity2″ diameter
• Cut height range2″–10″
• Tractor range24–50 HP, Cat 1
• Weight718 lb

6-foot heavy-duty rotary cutter with slip-clutch driveline and a 75 HP gearbox. Reinforced heavy-duty stump jumper and 10-gauge welded deck — built for pasture that only gets cut twice a year. This is the cutter we hang behind the MT347HC and the MT4 utility tractors.

• Cutting width72″ (6 ft)
• DrivelineSlip clutch
• Gearbox75 HP heavy duty
• Cutting capacity2″ diameter
• Lowest cutting height3″
• Tractor range35–72 HP, Cat 1
• Weight880 lb

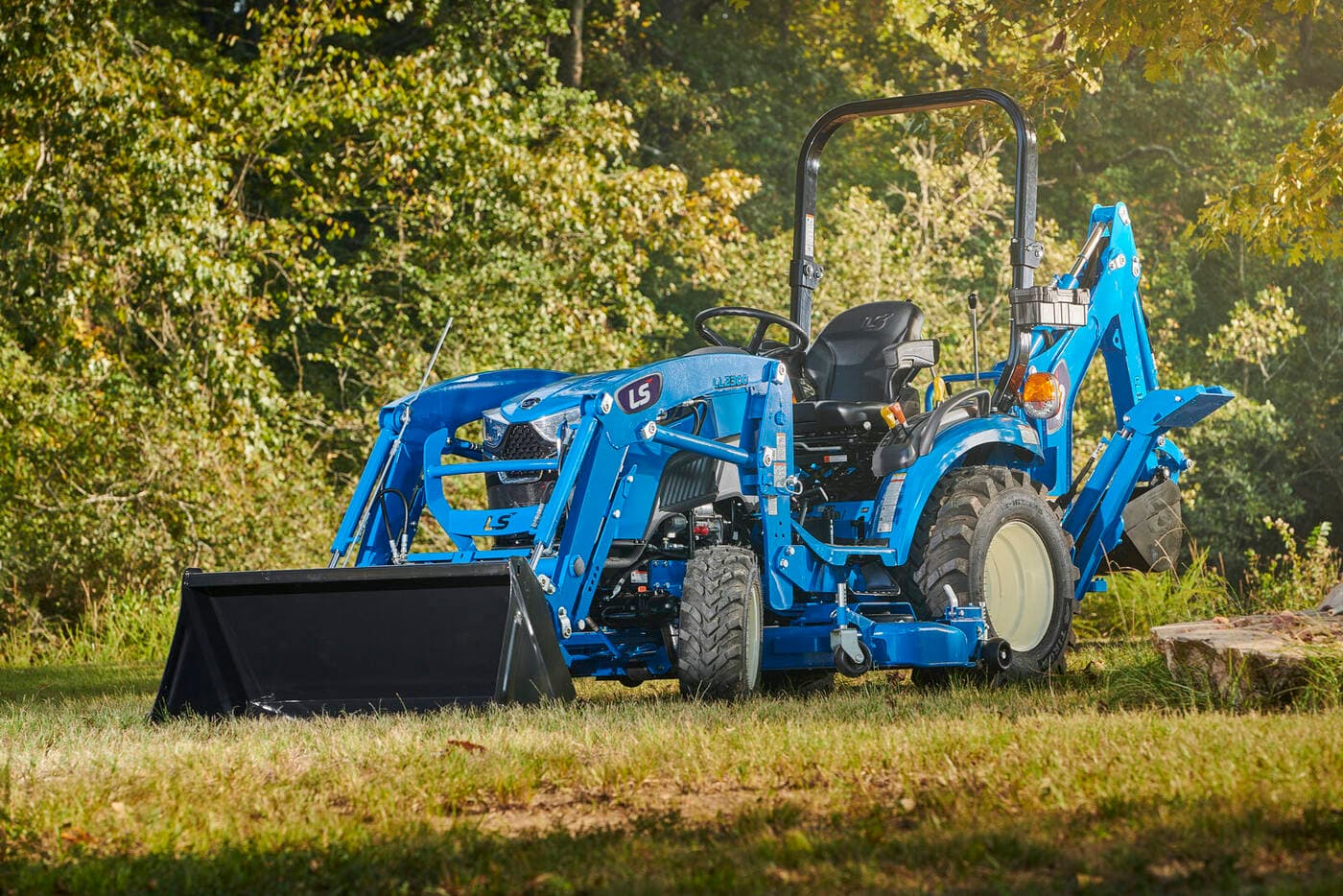

Side discharge mid mount mower for the MT1 sub compacts. Spiral bevel gear drive and a 60 inch cut that tucks under the tractor for clean trim work around the yard.

• Cutting width60″
• Blades3
• DriveU joint and double V belt
• Weight283.8 lb
• FitsMT122, MT125

Side discharge mid mount mower sized for the MT225S. 60 inch cut, spiral bevel gearbox, semi drive over attachment.

• Cutting width60″
• Blades3
• Deck3.0 mm
• Weight368 lb
• FitsMT225S

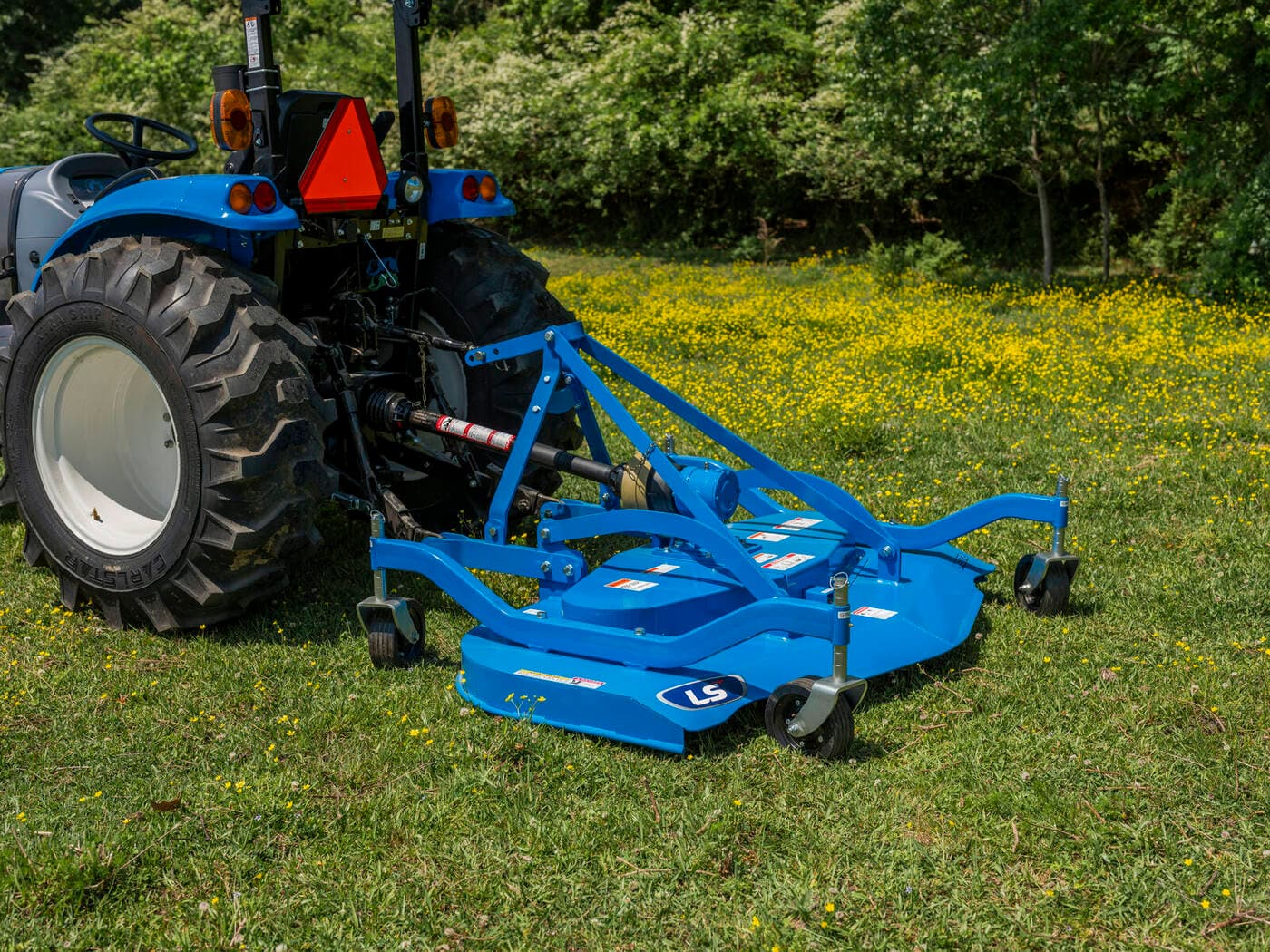

Rear discharge finishing mower for groomed turf. 72 inch cut with a 3/16 inch deck and Cat 1 hitch, rated to 40 PTO HP.

• Cutting width72″
• DischargeRear
• PTO range20 to 40 HP
• Weight661 lb
• HitchCat 1
• FitsMT2E, MT3

The big finishing deck. 84 inch rear discharge cut for larger lawns and grounds, rated to 60 PTO HP.

• Cutting width84″
• DischargeRear
• PTO range20 to 60 HP
• Weight728 lb
• HitchCat 1
• FitsMT3, MT4, MT5, MT7

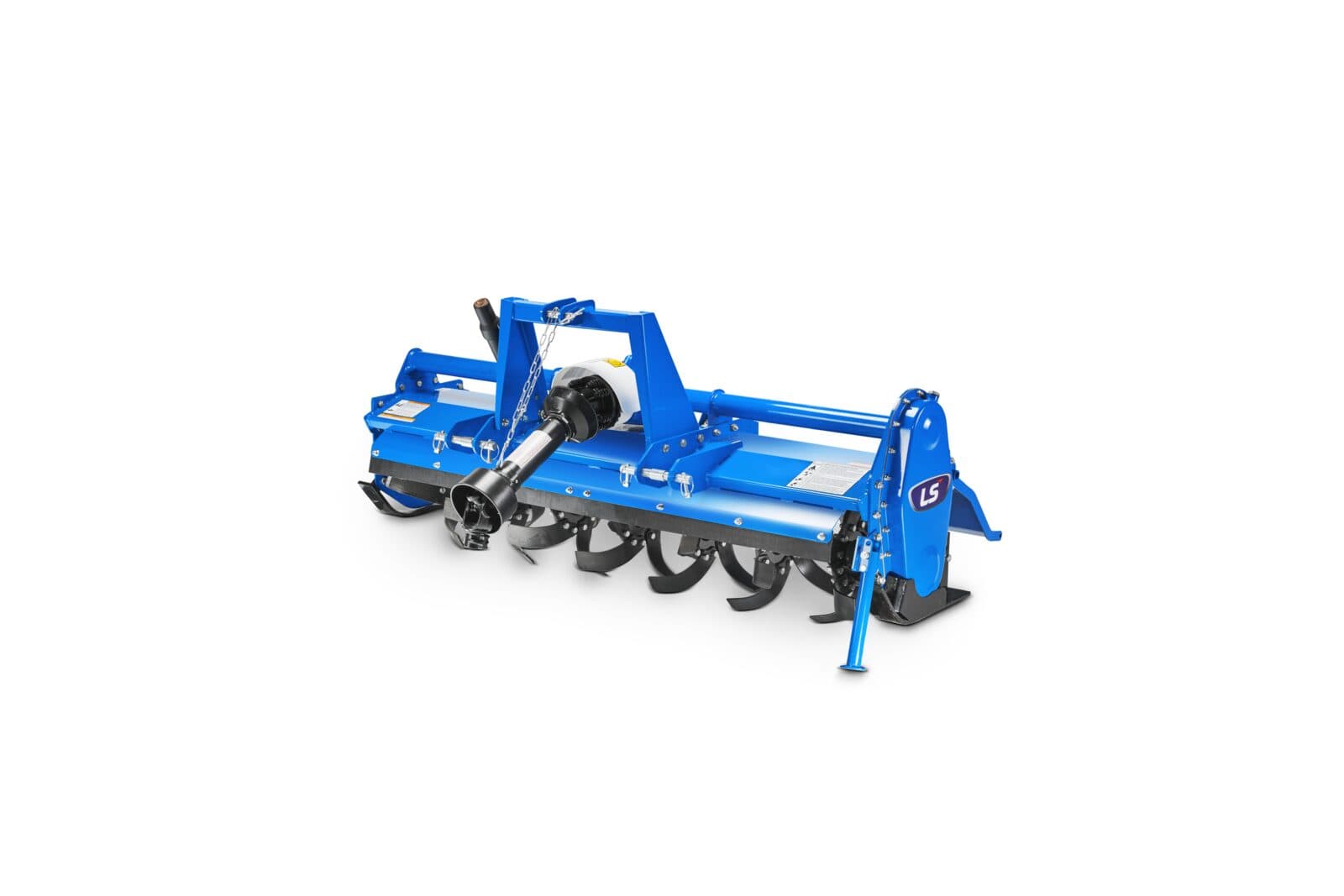

Gear drive rotary tiller for garden prep and seedbed work. 60 inch tilling width with 42 curved tines and a slip clutch driveline.

• Tilling width60″
• Tractor power25 to 40 HP
• Tines42
• DriveGear
• Weight443 lb
• FitsMT225E, MT226E

Full width tiller for the MT3 and MT4 frames. 72 inch tilling width, 54 tines, gear drive with slip clutch and shear bolt protection.

• Tilling width72″
• Tractor power35 to 50 HP
• Tines54
• DriveGear
• Weight624 lb
• FitsMT3E, MT3, MT4

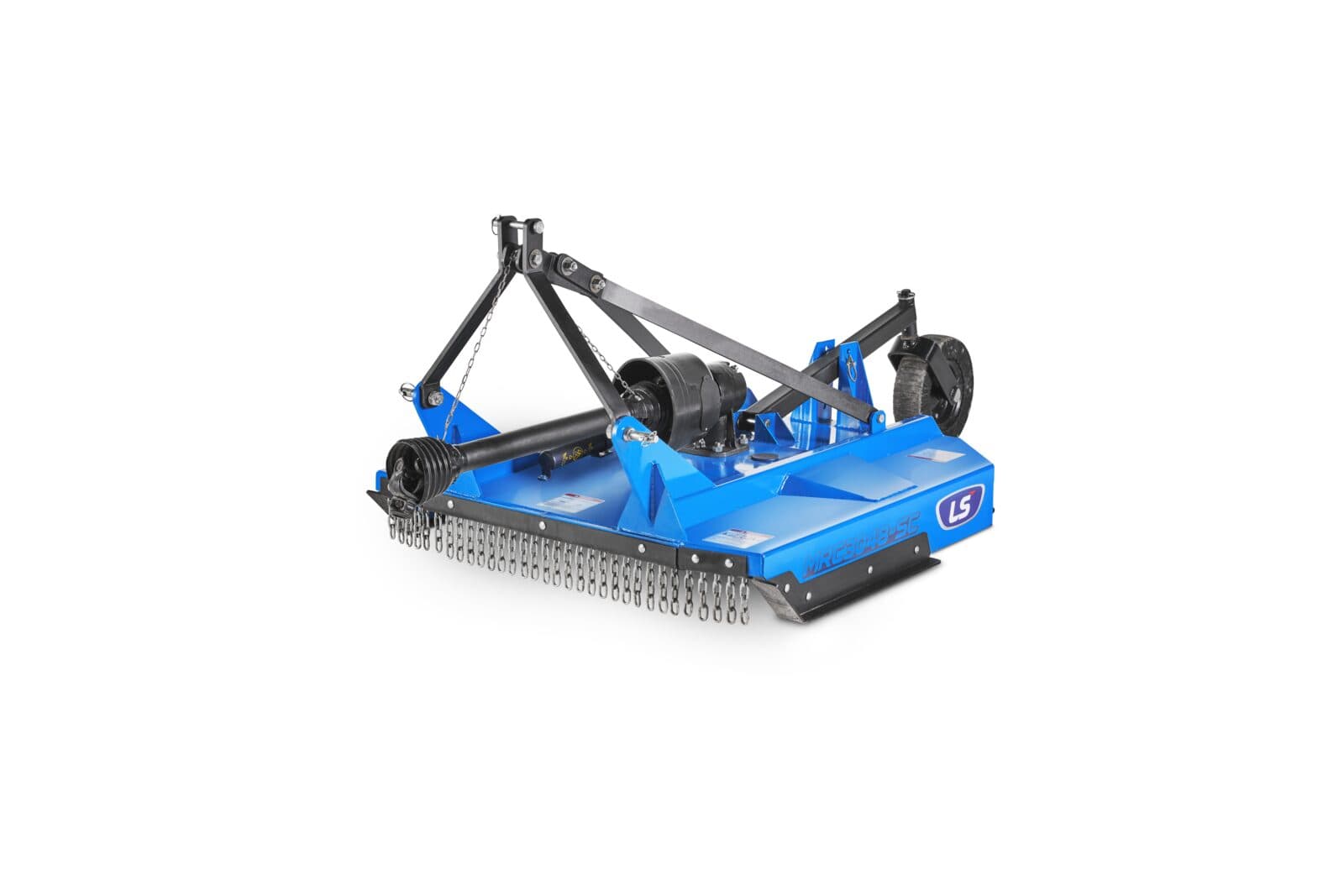

4 foot slip clutch rotary cutter matched to the sub compacts. 40 HP heavy duty gearbox, welded 10 gauge deck, cuts brush to 2 inches.

• Cut width48″
• Tractor range24 to 40 HP
• Cutting capacity2″ diameter
• Gearbox40 HP heavy duty
• Weight600 lb
• HitchCat 1

7 foot slip clutch rotary cutter for the big frames. 83 HP gearbox, reinforced deck, Cat 2 hitch.

• Cut width84″
• Tractor range35 to 83 HP
• Cutting capacity2″ diameter
• Gearbox83 HP heavy duty
• Weight1,100 lb
• HitchCat 2

Loader mounted rake grapple for brush and debris on the MT1 sub compacts. AR400 steel, 30 inch jaw opening.

• Overall width49 3/4″
• Rake width48″
• Jaw opening30″
• MaterialAR400
• Weight216 lb
• FitsMT122, MT125

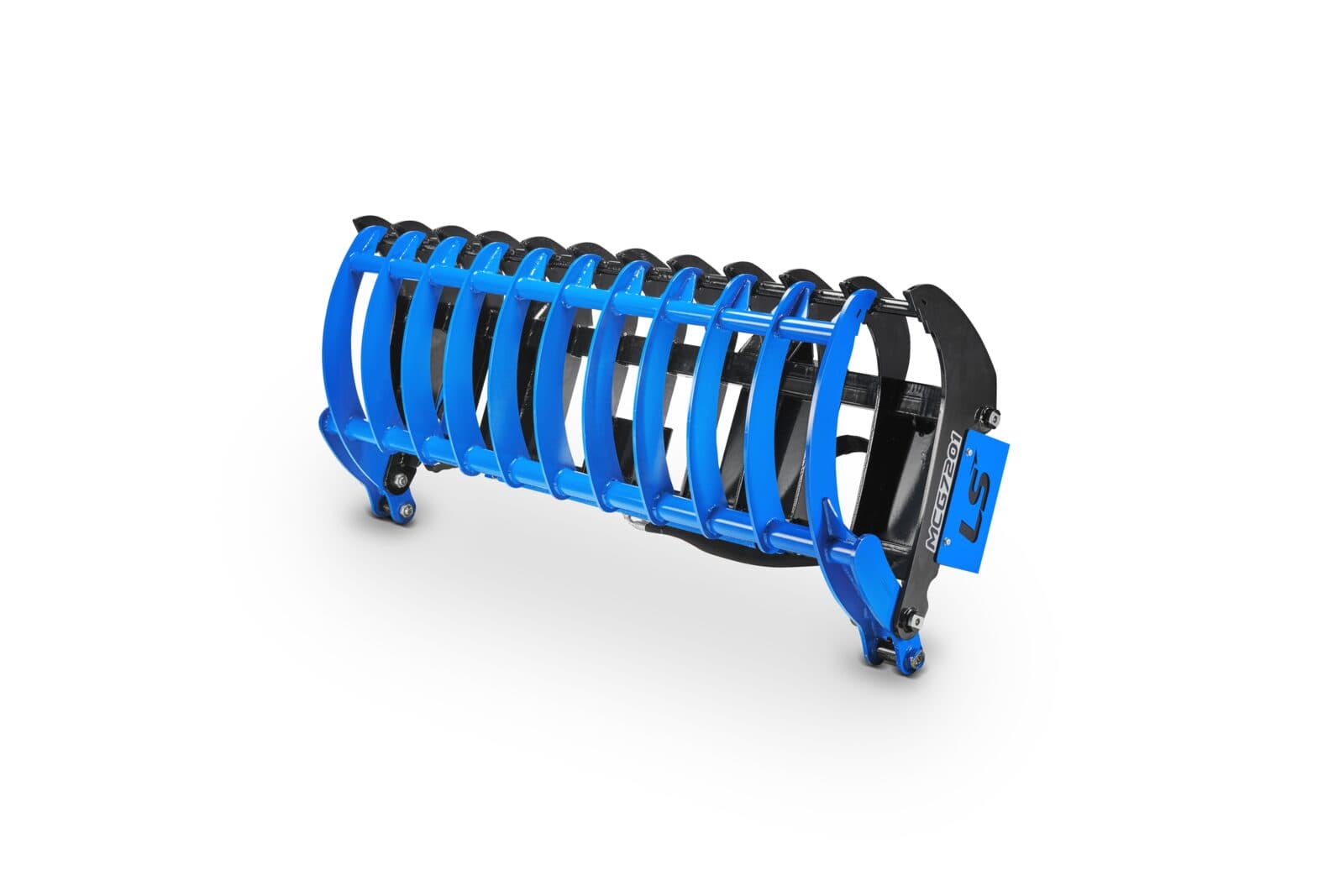

48 inch rake grapple on the universal skid steer mount. AR400 steel with a 33 inch jaw opening.

• Overall width48″
• Jaw opening33 1/3″
• AttachSkid steer type
• MaterialAR400
• Weight216 lb
• FitsMT122, MT125

54 inch rake grapple matched to the MT225S loader. AR400 steel, 30 inch jaw opening.

• Overall width56″
• Rake width54 3/8″
• Jaw opening30″
• MaterialAR400
• Weight242 lb
• FitsMT225S

54 inch rake grapple on the universal skid steer mount for the XJ and MT225S.

• Overall width56″
• Rake width54″
• Jaw opening30″
• AttachSkid steer type
• Weight242 lb
• FitsXJ2025, MT225S

60 inch rake grapple for the MT2E frames. AR400 steel with a 41 inch jaw opening for oversized brush piles.

• Overall width62″
• Rake width60 1/4″
• Jaw opening41″
• MaterialAR400
• Weight300 lb
• FitsMT225E, MT235E, MT240E, XR3135, XR3140

60 inch rake grapple on the universal skid steer mount for MT2 and MT3 loaders.

• Overall width62″
• Rake width60″
• Jaw opening30″
• AttachSkid steer type
• Weight251 lb
• FitsMT2, MT3

Heavy 66 inch rake grapple for the MT3 frames. 12 bottom and 11 top teeth, 41 inch jaw opening.

• Overall width76 3/4″
• Rake width75″
• Jaw opening41″
• Teeth12 bottom, 11 top
• Weight490 lb
• FitsMT342, MT347, MT352, MT357, MT345E, MT350E, XR41

66 inch rake grapple on the universal skid steer mount. 12 bottom and 11 top teeth.

• Overall width67 2/3″
• Rake width66″
• Jaw opening41″
• AttachSkid steer type
• Weight427 lb
• FitsMT2, MT3

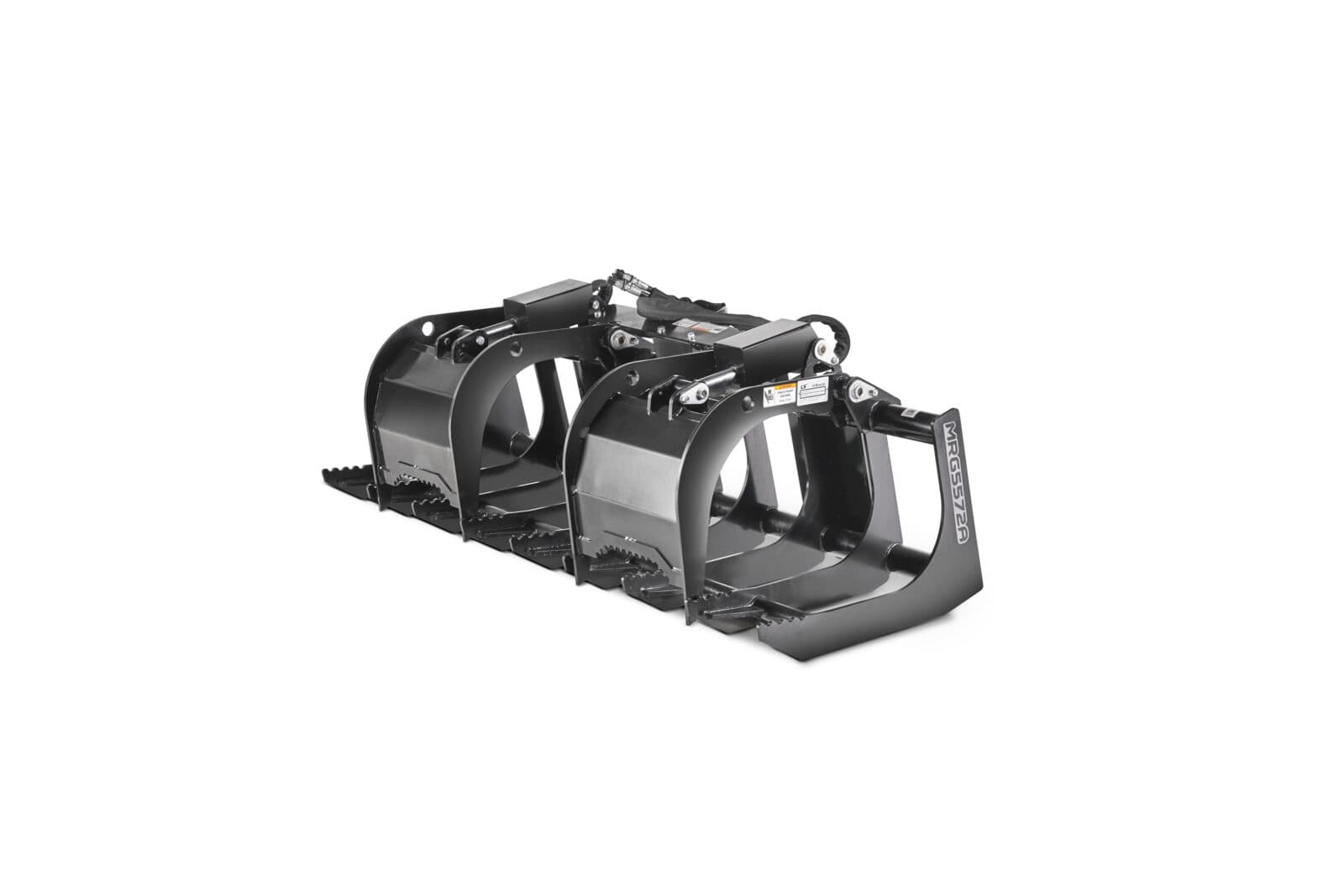

Heavy root grapple for land clearing on the MT4. 9 teeth, twin cylinders, 36 inch max opening.

• Overall width66″
• Max tooth opening36″
• Teeth9
• Cylinders2
• Weight509 lb
• FitsMT4

72 inch root grapple for root extraction and large debris on the MT5. 9 teeth, twin cylinders, 36 inch max opening.

• Overall width72″
• Max tooth opening36″
• Teeth9
• Cylinders2
• Weight525 lb
• FitsMT5

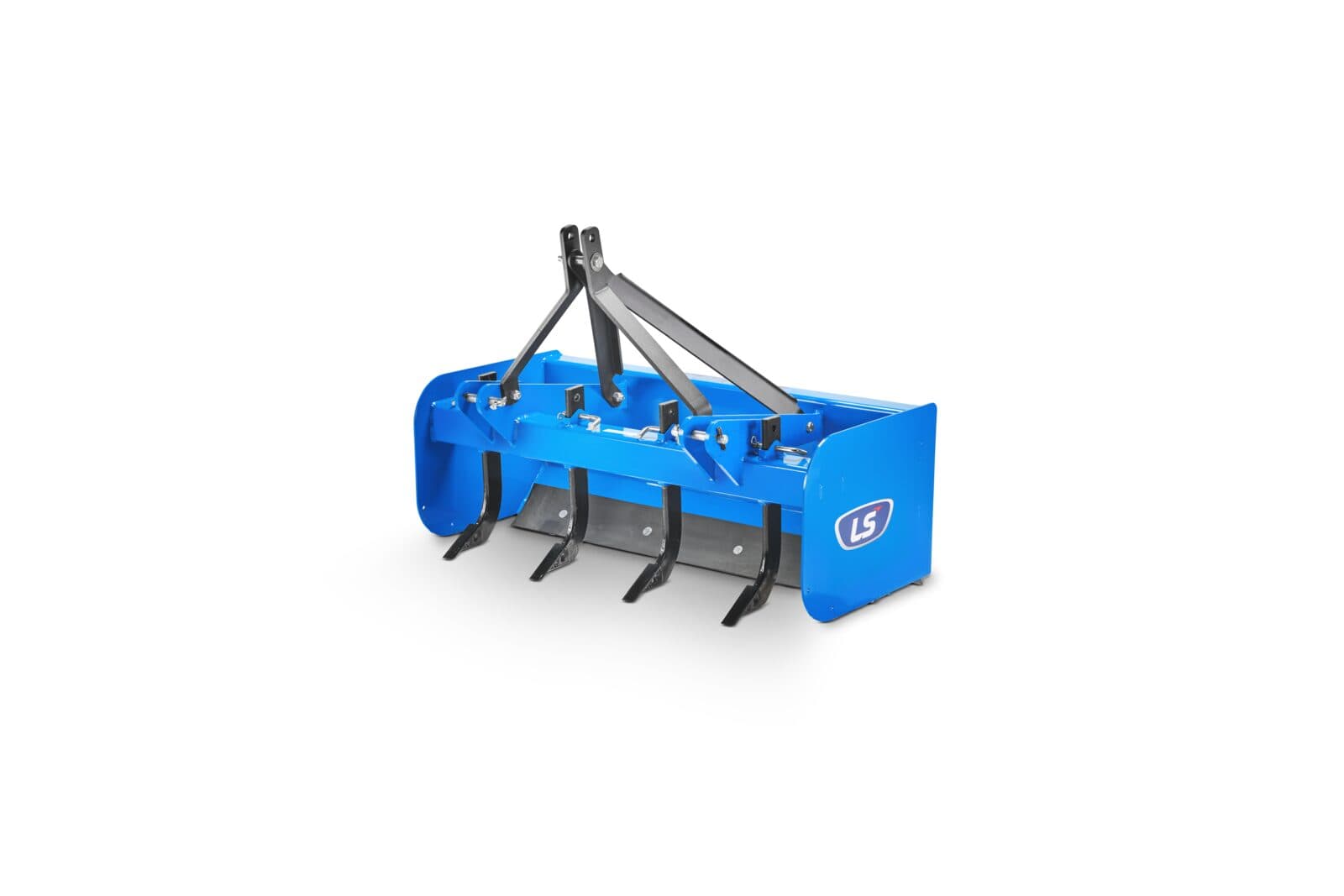

48 inch box blade for leveling and back dragging with the sub compacts. Quarter inch moldboard, solid welded lift brackets.

• Total width53 3/16″
• Blades48″
• Tractor range2WD at 35 HP, 4WD at 30 HP
• Weight389 lb
• HitchCat 1

60 inch box blade for grading, leveling, and driveway maintenance.

• Total width64 1/4″
• Blades60″
• Tractor range20 to 60 HP
• Weight436 lb
• HitchCat 1

72 inch box blade sized for the MT3 frames. Full width rippers and a heavy welded design.

• Total width76 3/16″
• Blades72″
• Tractor range20 to 60 HP
• Weight510 lb
• HitchCat 1

72 inch land grader with dual heavy steel blades for roads, pads, and driveways.

• Working width72″
• Overall width76″
• Recommended PTO25 to 55 HP
• HitchCat 1 quick hitch
• Weight499 lb

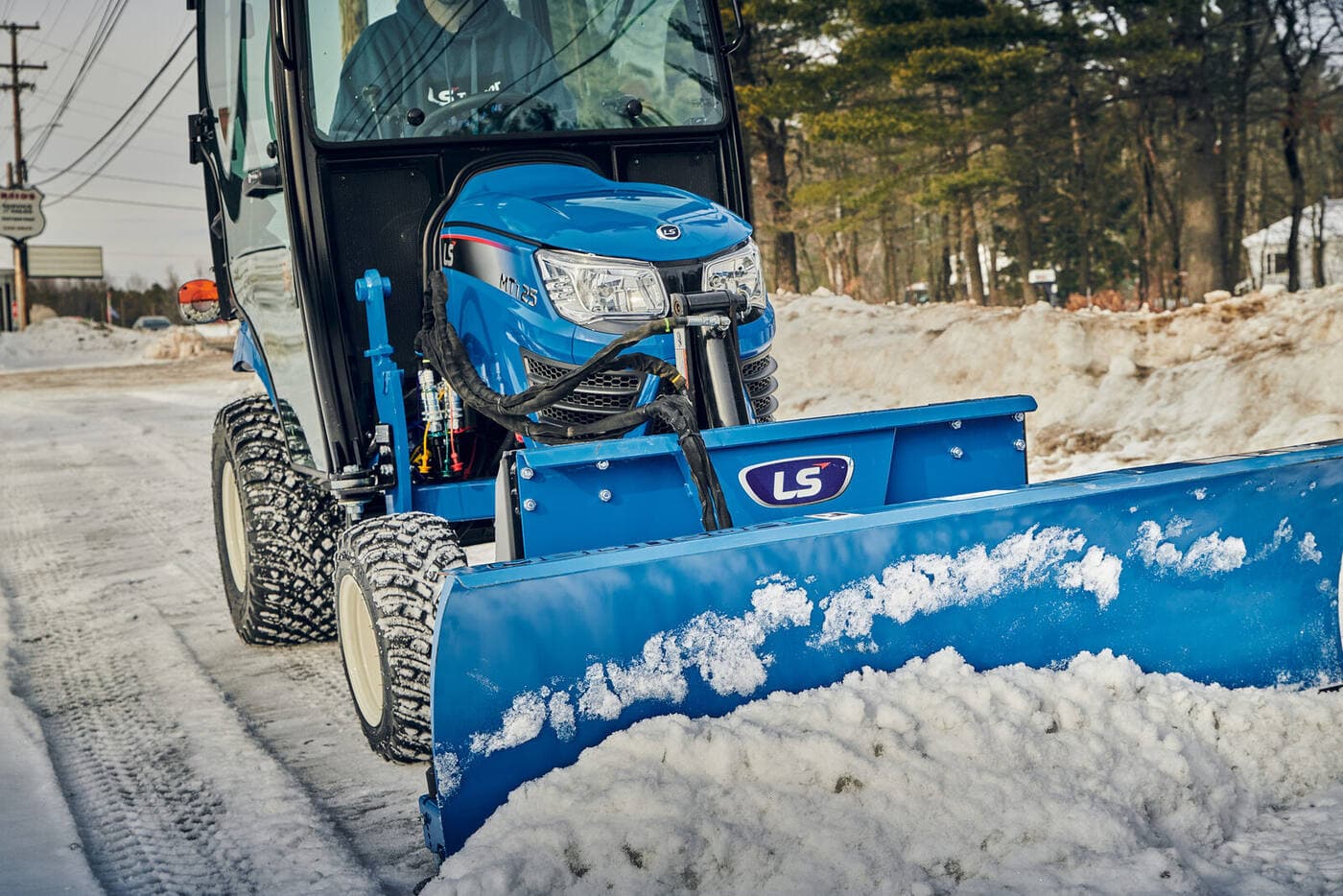

60 inch front blade for snow and light material. Rubber blade option available for finished surfaces.

• Blade width60″
• OptionsRubber blade 40449116
• FitsMT122, MT125, MT225S

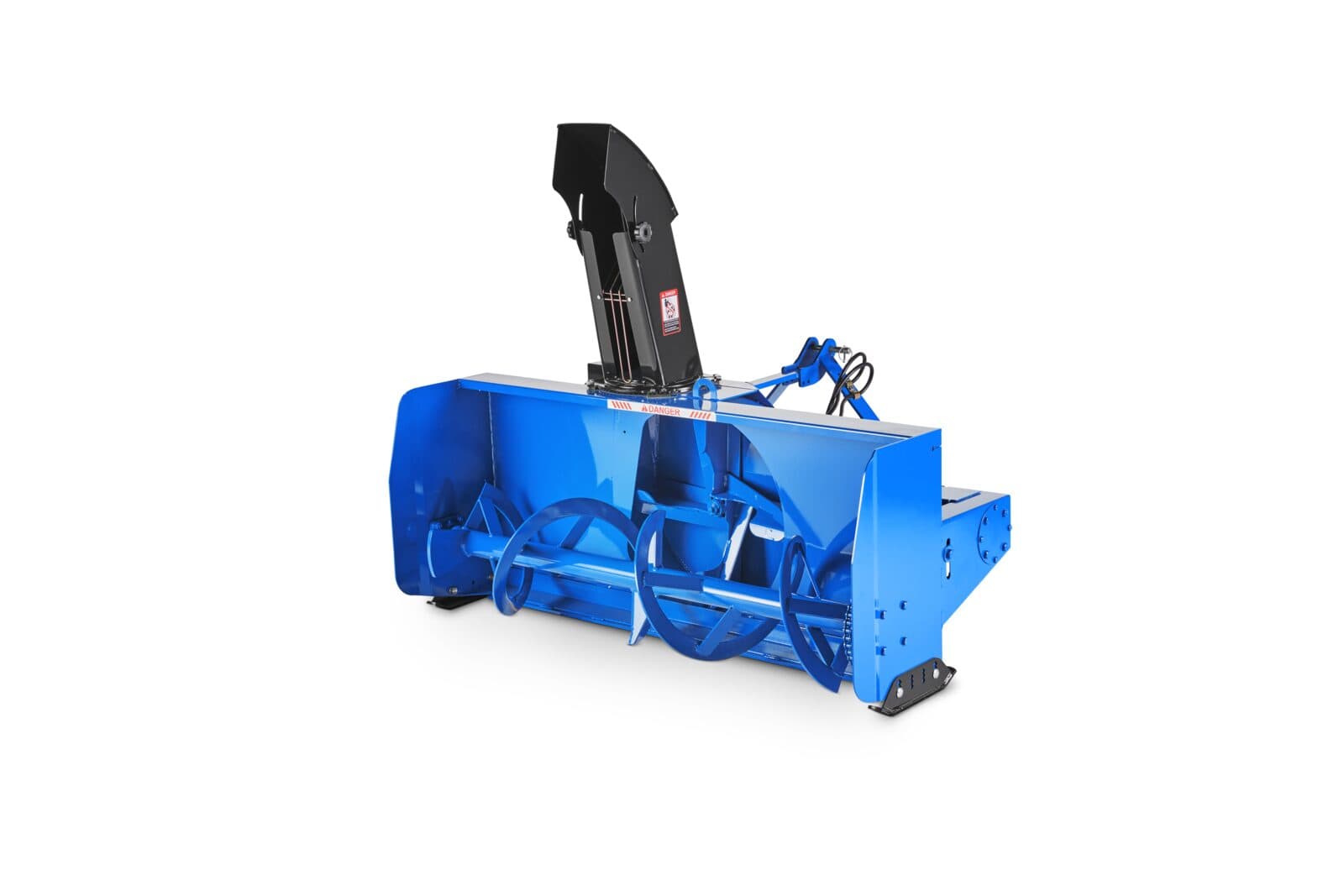

Rear mount snowblower with mid PTO drive. 64 inch clearing width with hydraulic or electric deflector option.

• Overall width64″
• Auger diameter13 3/4″
• Impeller17 5/8″
• DriveMid PTO
• Weight500 lb
• FitsMT335, MT340, 2023 MT2E/C

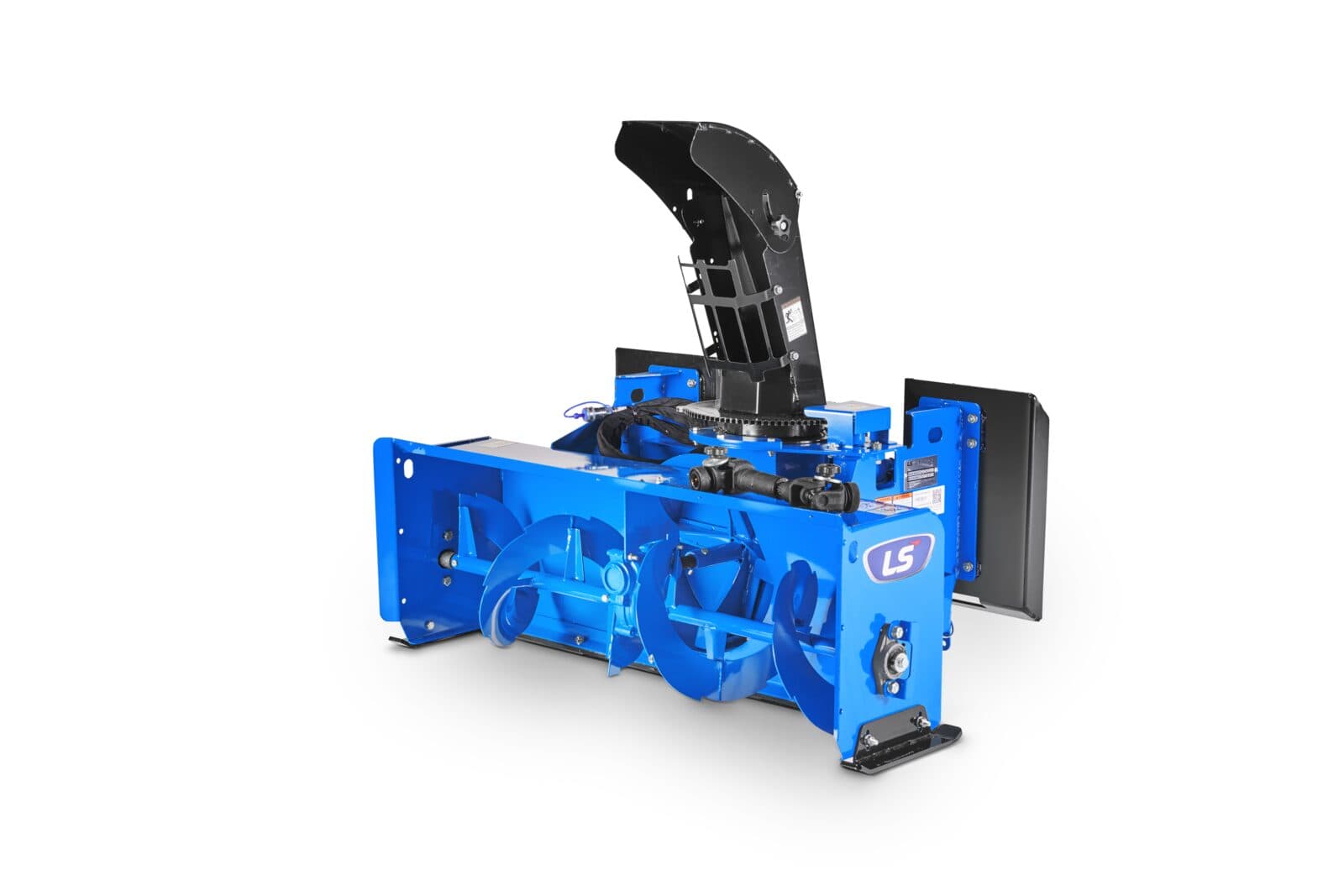

Front mount snowblower with hydraulic chute rotation for the new MT2 and MT2E.

• Overall width68″
• Auger diameter13 3/4″
• Impeller16″
• ChuteHydraulic rotation
• Weight560 lb
• FitsNew MT2, MT2E

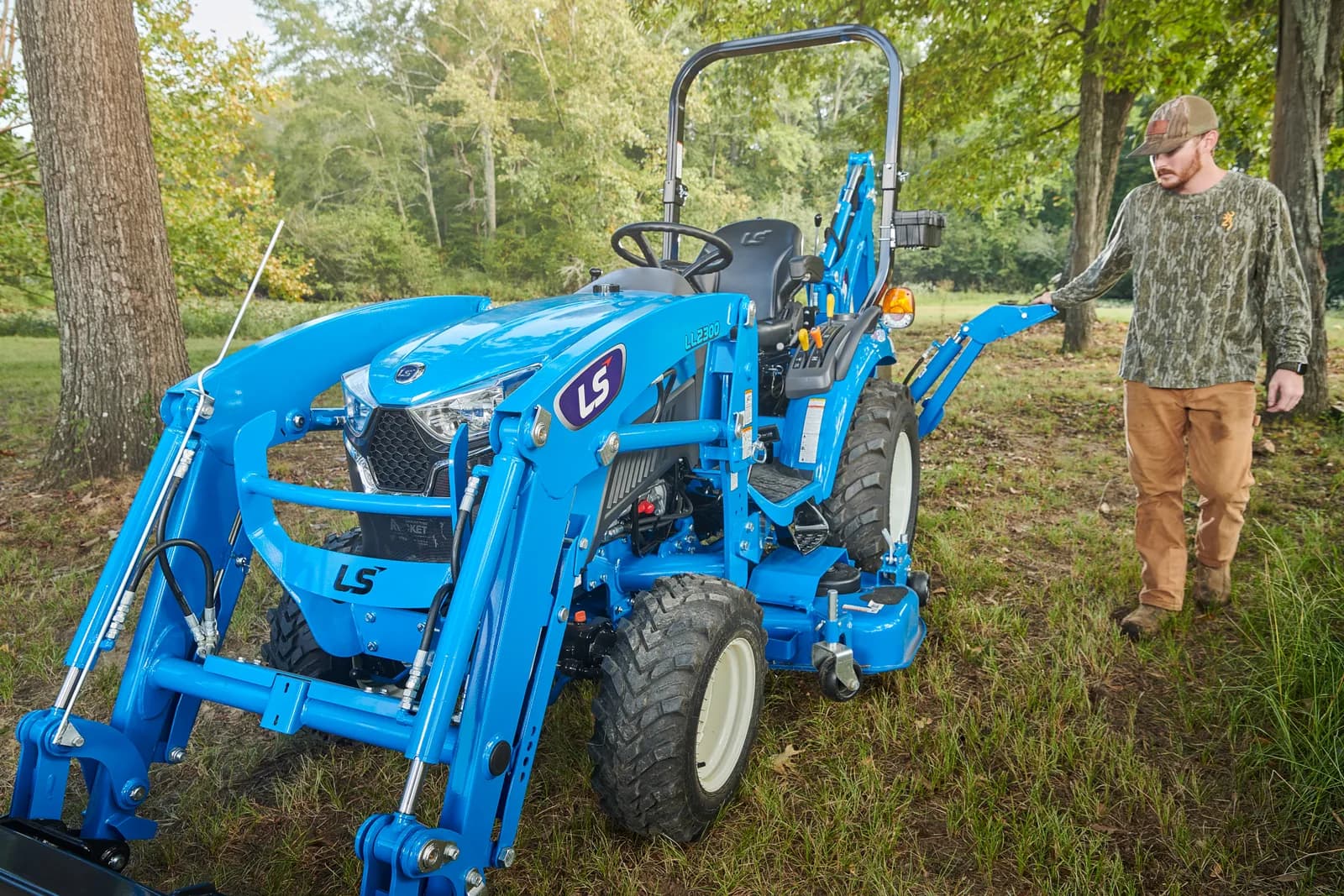

Side discharge mid mount mower for the MT1 sub compacts. Spiral bevel gear drive with a 54 inch cut and side loading attach for quick removal.

• Cutting width54″
• Blades3
• DriveU joint and double V belt
• Gear ratio1:1.19
• Weight253.5 lb
• FitsMT122, MT125

Side discharge mid mount mower sized for the XJ2025H. Cast iron gearbox and belt drive with wheel pin height adjustment.

• Cutting width60″
• Blades3
• DriveBelt
• Gear ratio1:1.42
• Weight372 lb
• FitsXJ2025H

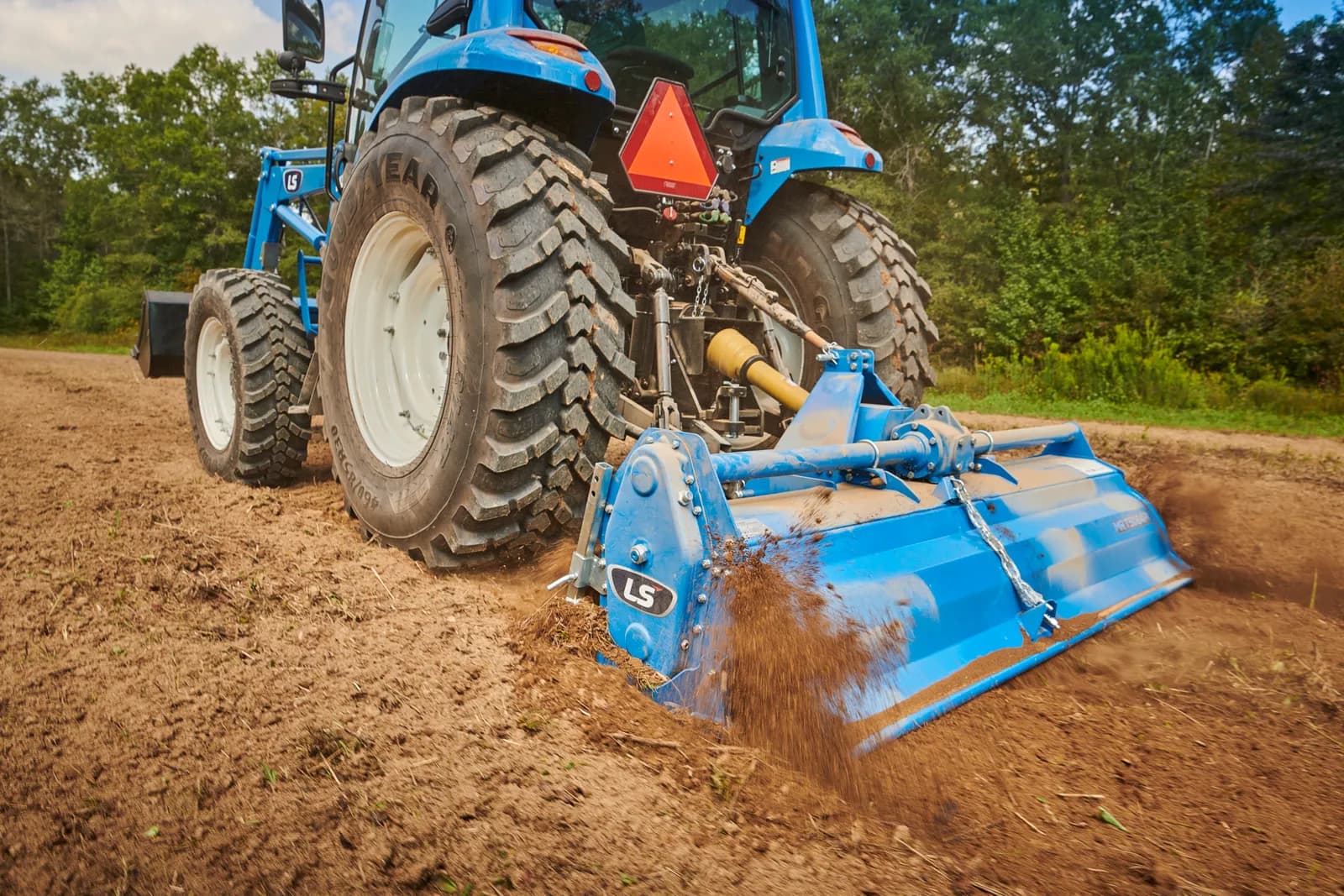

Gear drive rotary tiller with slip clutch protection. 48 inch tilling width with 36 curved tines for garden prep on the sub compacts and small compacts.

• Tilling width48″
• Tractor power20 to 35 HP
• Tines36
• DriveGear
• Safety deviceSlip clutch
• Weight401 lb
• FitsMT122, MT125, XJ2025H, MT225S

Chain drive rotary tiller, the value option for the sub compacts and small compacts. 48 inch tilling width with 12 curved tines and shear bolt protection.

• Tilling width48″
• Tractor power20 to 25 HP
• Tines12
• DriveChain
• Safety deviceShear bolt
• Weight342 lb
• FitsMT122, MT125, XJ2025H, MT225S

Gear drive rotary tiller with slip clutch and shear bolt protection for the compact frames. 65 inch tilling width with 48 curved tines.

• Tilling width65″
• Tractor power30 to 45 HP
• Tines48
• DriveGear
• Safety deviceSlip clutch and shear bolt
• Weight624 lb
• FitsMT2E, MT3E, MT3

Gear drive rotary tiller for the big utility frames. 84 inch tilling width with 54 curved tines and dual category hitch compatibility.

• Tilling width84″
• Tractor power50 to 65 HP
• Tines54
• DriveGear
• HitchCat I and II
• Weight961 lb
• FitsMT4, MT5

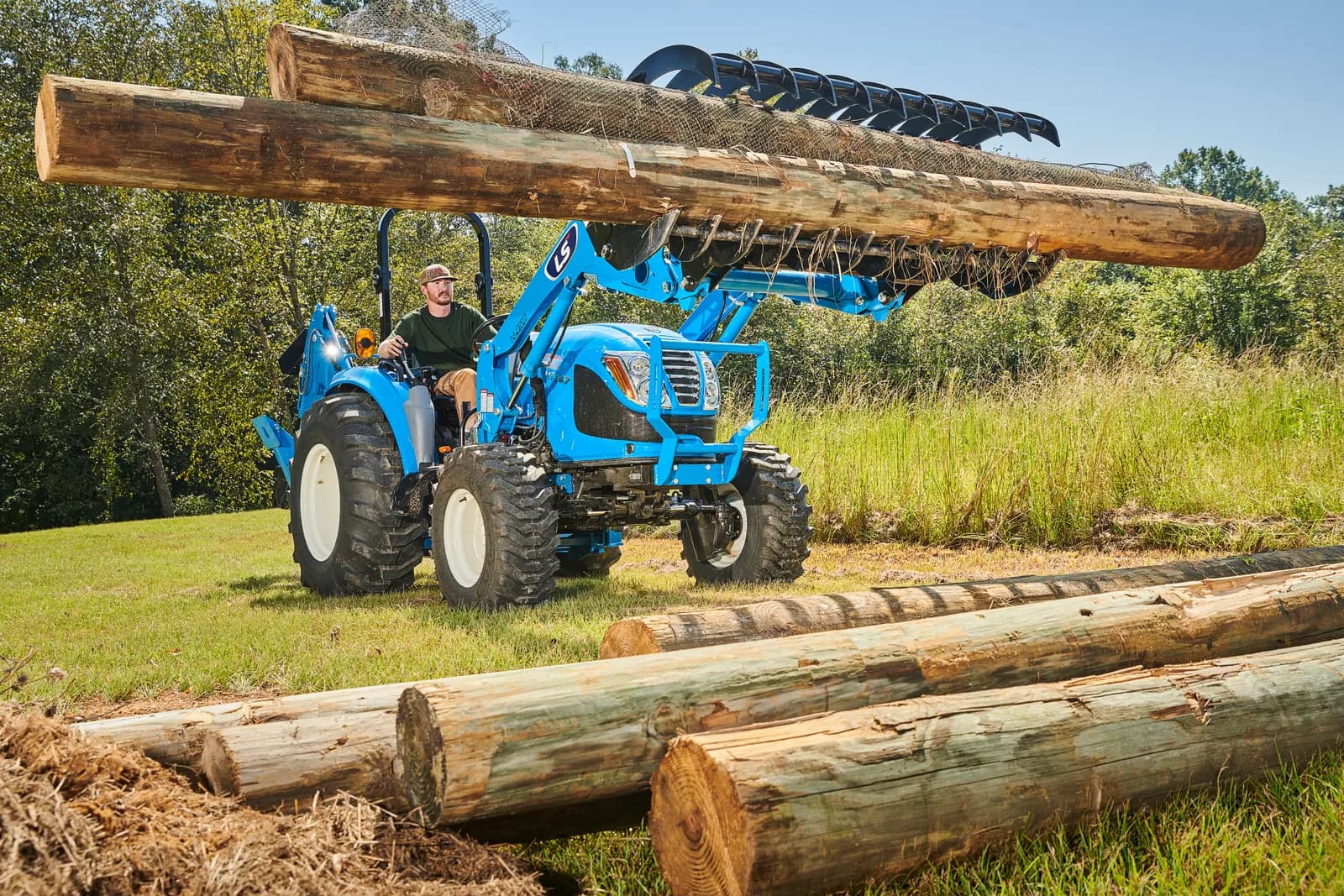

72 inch rake grapple on the universal skid steer mount for the MT3, MT4, and MT5 frames. AR400 steel with a 41 inch jaw opening.

• Overall width76 3/4″
• Rake width75″
• Jaw opening41″
• AttachSkid steer type
• MaterialAR400
• Weight476 lb
• FitsMT3, MT4, MT5

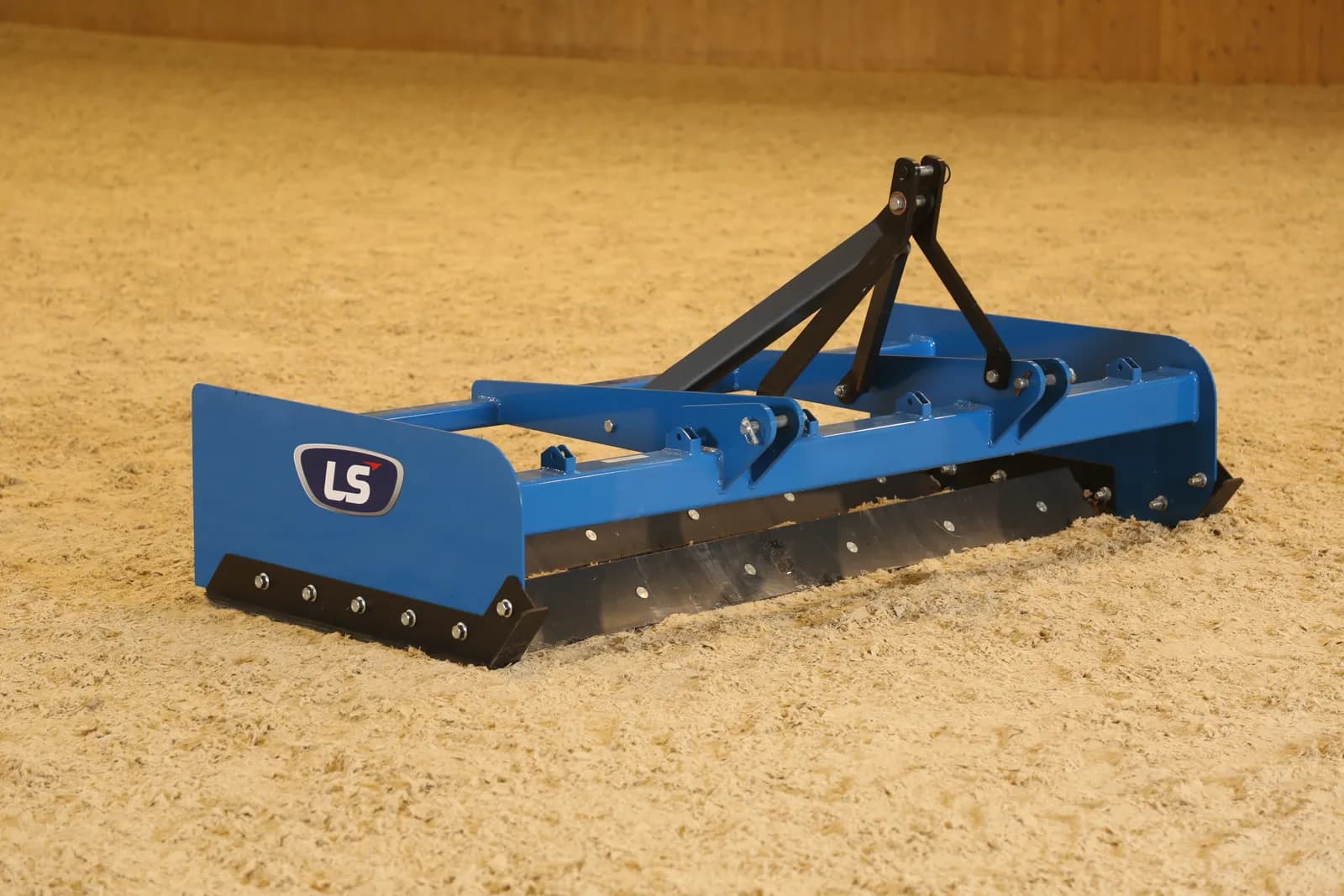

84 inch land grader for heavy grading and driveway work, sized for 40 to 80 horsepower tractors. Cat 2 quick hitch with 20.28 cubic feet of box capacity.

• Working width84″
• Overall width88.5″
• Box height16.5″
• Capacity20.28 cu ft
• HitchCat 2 Quick Hitch
• Tractor power40 to 80 HP
• Weight578 lb

Front mount rotary broom for clearing snow, debris, and loose material from paved surfaces. Attaches directly to the loader quick hitch, no subframe required.

• Sweep width54″
• AttachFront loader quick hitch
• OptionsShatter proof rubber plate 40449120
• Weight300 lb
• FitsMT122, MT125, MT225S

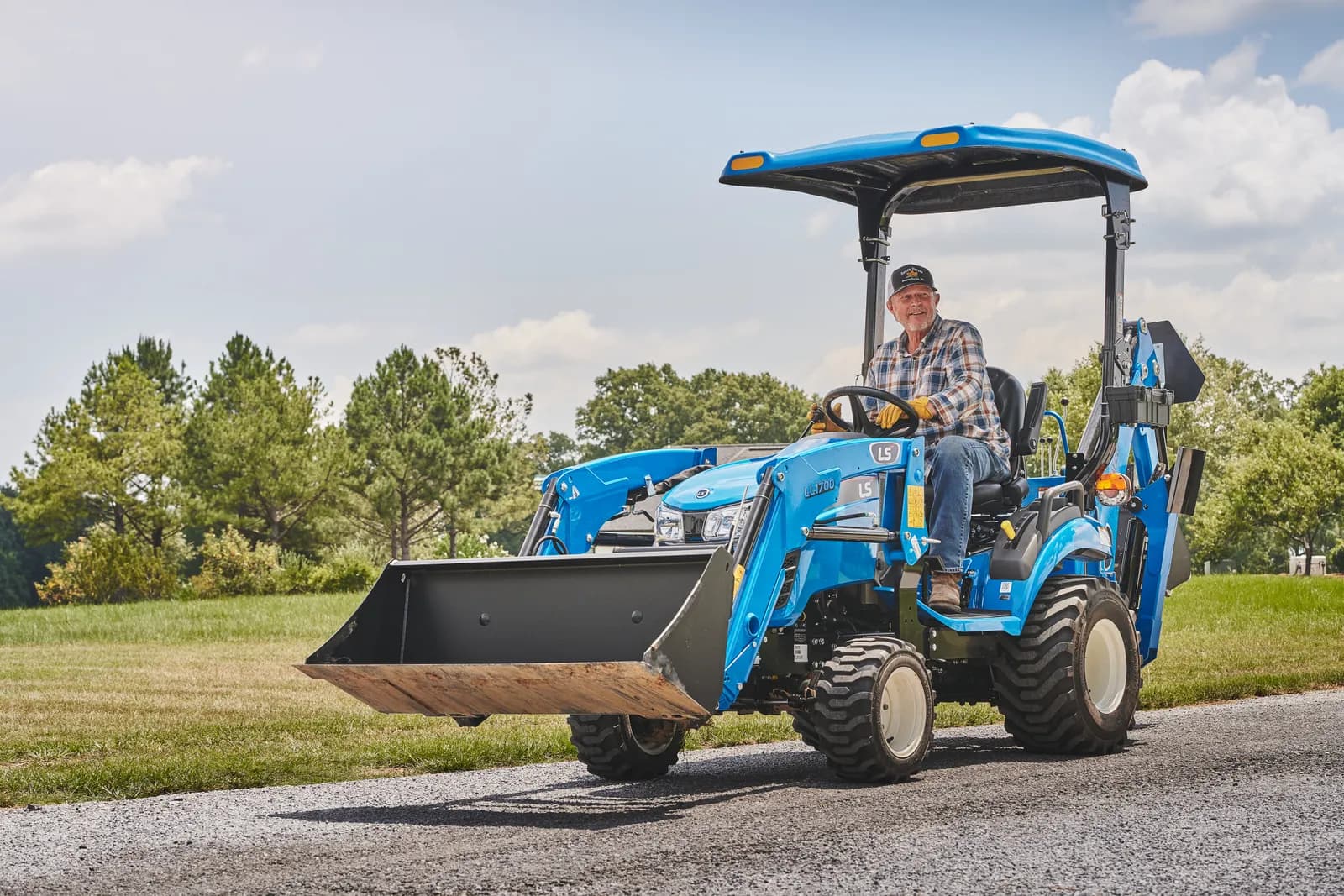

Bolt-on ROPS canopy for open station tractors from the MT1 through MT3 frames. Weatherproof roof panel with the mounting kit included, no separate hardware to source.

• FitsMT1, MT2S, MT2E, MT3 ROPS
• IncludesMount kit
• Pack1 each
• Weight80 lb
